Pressure transmitter

small vacuum differential pressure sensor

Product description:
INQUIRY

Products Description

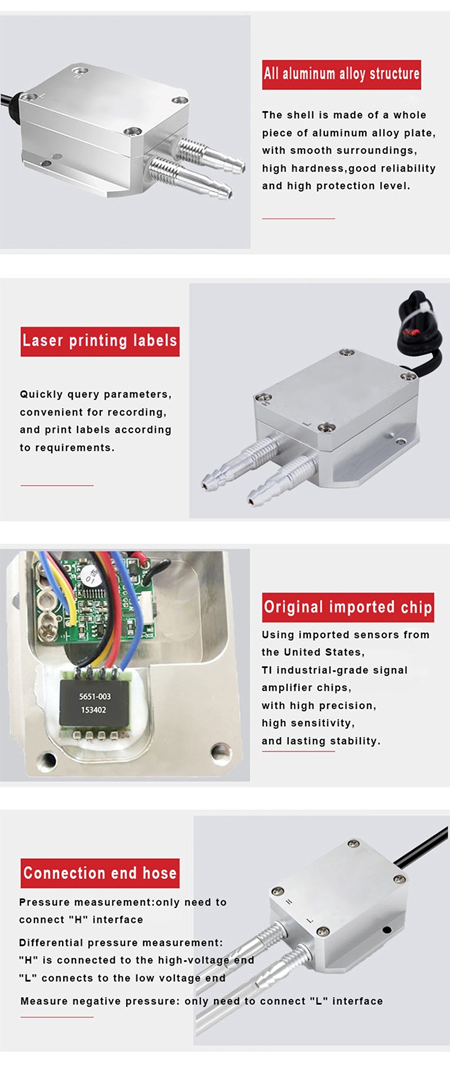

RST60 intelligent pressure transmitter is assembled with aluminum housing and stress isolation technology. Integrated structure design lead to compact layout. With intelligent compensation technology.

It is suitable for wind pressure,wind speed & flow measurement. It is widely used in various industrial fields as well as intelligent building and other construction projects, such as power plant boiler primary air,secondary air measuring, mine ventilation,indoor ventilation, boiler air, pressure of fan, air duct pressure, Metro wind pressure and environment wind pressure test

Specification

Product name	micro boiler coal wind 4-20ma gas differential pressure transmitter
Key words	4-20ma gas differential pressure transmitter
Model	XDB600
Power supply	24VDC
Output single	4~20mA,1~5V,0~10V,RS485
Warrenty	2 years
Measuring range	-0.1...0...40kpa
Compensation temperature	-10~70℃
Medium temperature	-40~80℃
Environment temperature	-40~85℃
Measuring media	Gaseous
Pressure type	Gauge pressure,Absolute pressure
Accuracy	0.1%F.S,0.25%F.S,0.5%F.S(standard)
Zero temperature drift	±0.03%F.S/℃
Sensitivity temperature drift	±0.03%F.S/℃
Overload	200%F.S
Long-term stability	≤0.2%F.S/year
Inherent frequency	5kHz~650kHz
Protection grade	IP65
