Pressure transmitter

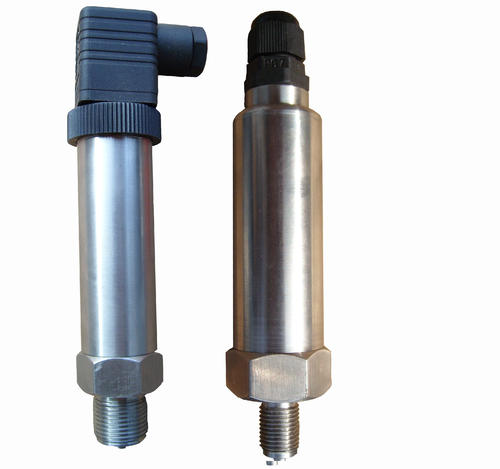

Compact pressure transmitter

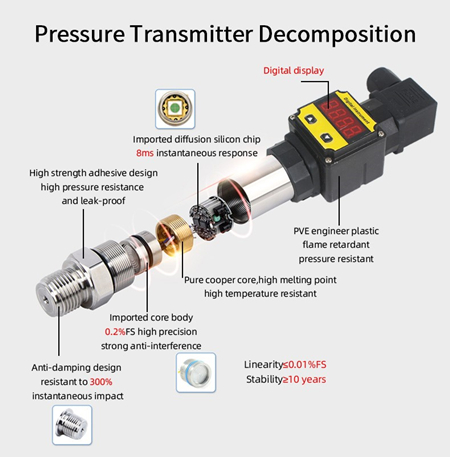

316L stainless steel diaphragm structure
Reverse polarity and current limiting protection
Anti - vibration, anti - impact, anti - RF electromagnetic interference
Overload and anti - interference ability is strong, economical and practical stability
Product description: RST-121 compact pressure transmitter uses a high performance pressure sensor chip, with advanced circuit processing and temperature compensation technology, the pressure change into a linear current o
INQUIRY

Products Description
RST1100 series of pressure sensors are cost-effective products designed for high volume, low cost industrial and civil pressure measurement field. The pressure sensor adopts imported pressure sensitive components, digital compensation amplifier circuit with microprocessor, laser welding and packaging process of stainless steel housing, built-in anti-radio frequency and anti-electromagnetic interference circuit, with high precision, high reliability, small size, vibration resistance, anti-interference, strong ability feature and so on. This series of products offers a variety of mounting thread and electrical connection for customers to choose.

Specification

Measure media	Gas, water, oil or other media can be compated with stainless
Pressure type	Gauge; Absolute; Negative, Sealed gauge pressure
Pressure range	-0.1~0~100Mpa
Power supply	DC12~36V (DC24V)

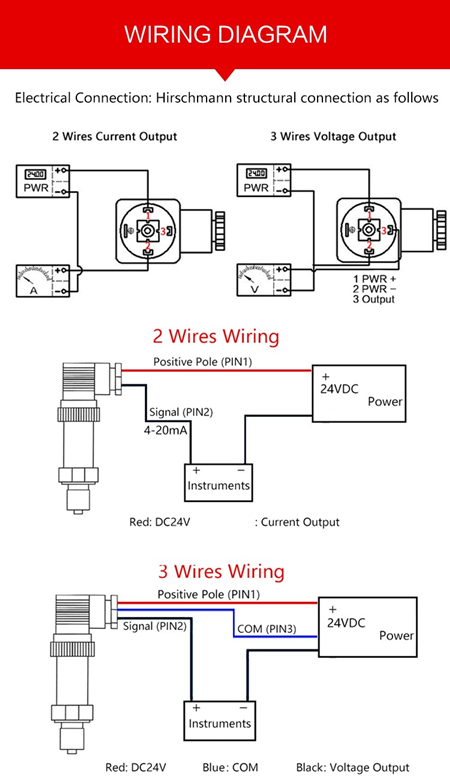

Output signal	4~20mA,1~5V,0~5V,0~10V,RS485,etc
Accuracy	0.5% F.S(Default); 0.2% F.S
Response time	≤8mS
Overload pressure	200% F.S.
Ambient temperature	-40~85℃
Compensation temperature	-10~70℃
Protection grade	IP65
Long-term stability	Standard: 0.2%F.S±0.05%
Zero temperature drift	0.03%FS/°C(≤100kPa), 0.02%FS/°C(>100kPa)
FS temperature drift	0.003%FS/°C(≤100kPa), 0.002%FS/°C(>100kPa)
Natural frequency	5KHz~650KHz
Thread size	M20*1.5(Default), Customization
