Pressure transmitter

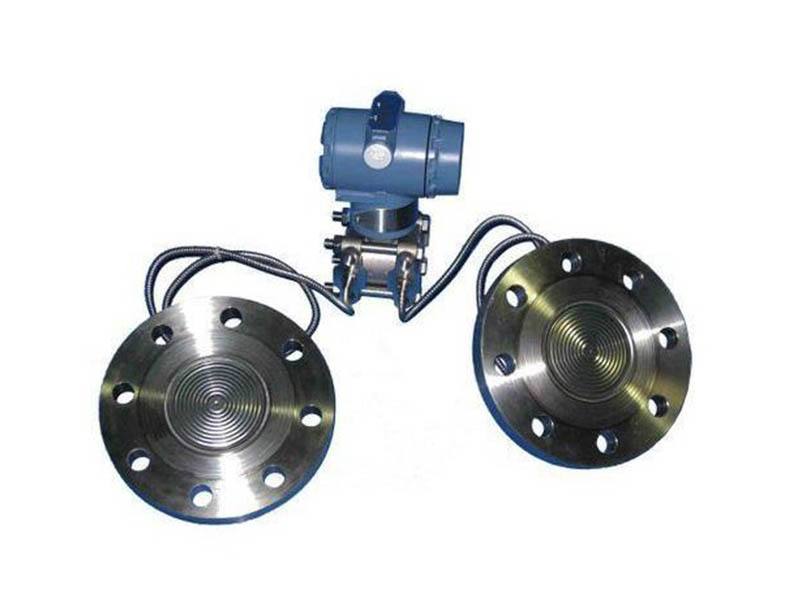

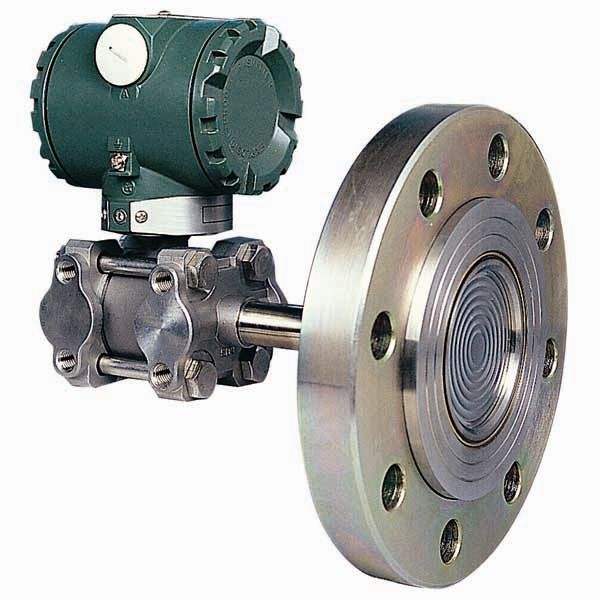

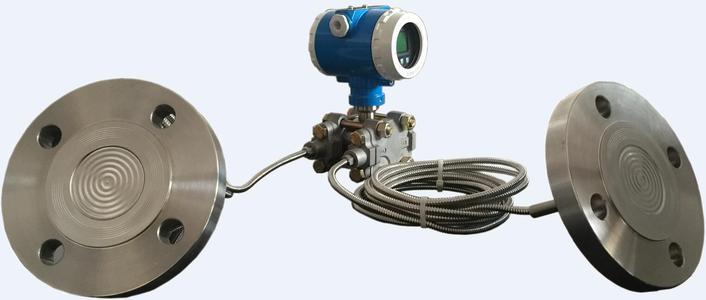

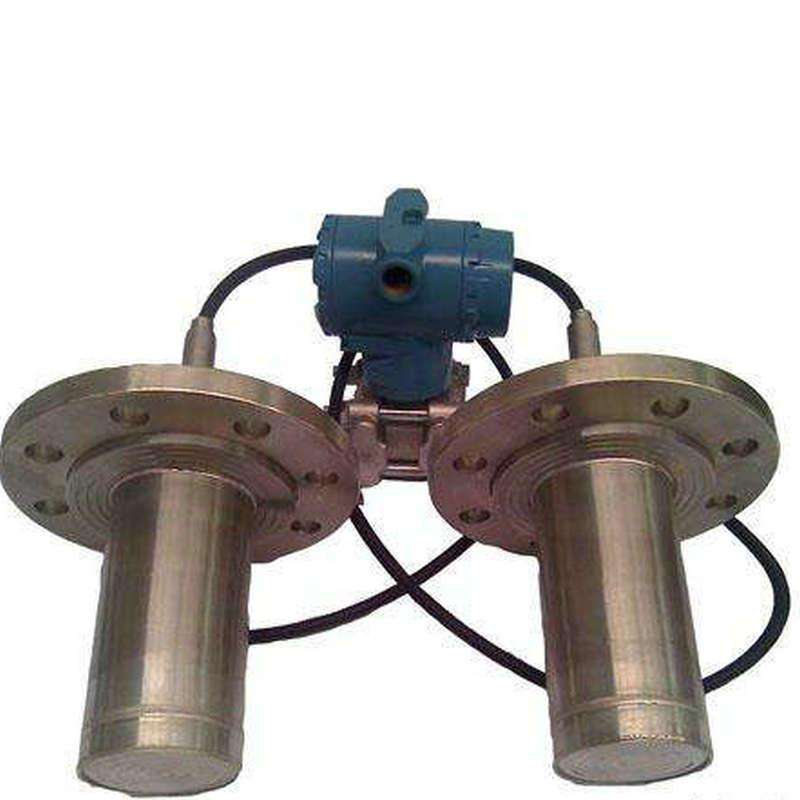

Flanged pressure (liquid level, differential pressure) transmitter

Super measuring performance, used for differential pressure, pressure, liquid level, flow measurement;
Full range of unified structure, strong interchangeability
Zero and range can be adjusted on site
Support for upgrades to fieldbus and fieldcontrol-based technologies
Product description: Rst3051/3051lt flanged pressure (liquid level, differential pressure) transmitter's key raw materials, components and parts are imported or joint venture, the whole machine has been strictly assembled
INQUIRY

Different pressure transmitter for level measurement is used to prevent pipe directly into the transmitter in the medium pressure sensor assembly, between it and the transmitter is filled with fluid by capillary connecting, 3051GP remote pressure transmitter used to measure pressure liquid, gas and steam, and then outputs the signal pressure corresponding 4-20mADC transmitted. 3051GP can communicate with each other HART Communicator, through its setting and monitoring.

Model	FD3051S LT Pressure Level Transmitter
Pressure Range	-5Bar...-0.06Bar...~0~0.006Bar...0.4Bar..1Bar....30Bar(optional).
Pressure Type	Pressure/Differential pressure
solating Diaphragm	SS316L,Hastelloy C,Tantalum
Output Signal	Two Wire 4~20mADC, 4~20mADC with HART
Output Signal	15-36V DC,24V DC
Accuracy	≤ 0.25%,0.5%
Working Temperature	-30 to 180°C Optional
Storage Temperature	Max 85℃
Overload pressure	150% FS
Burst Pressure	200% FS
Electrical Connection	Standard: 0.2%/year
Standard: 0.2%/year	0.003%FS/℃(≤100kPa), 0.002%FS/℃(>100kPa)
Insulation Resistance	>100M Ω @50V
Electrical Connection	M20x1.5,1/2''NPT Cable entry
Process Connection	Flange DN 50/2",DN 80/3",DN 4".
Indicator	LCD Display
Housing Material	Aluminum with Epoxy Resin Coat
Process Material	316/304 Stainless Steel
Fill fluid	Silicone oil/ Fluorinated oil
Configuration	Digital communication or local key adjustment.
Explosion Protection	NEPSI : Ex dⅡC T6, Ex iaⅡC T4
Protection Level	IP65,IP67
Weight	5-12KGS
