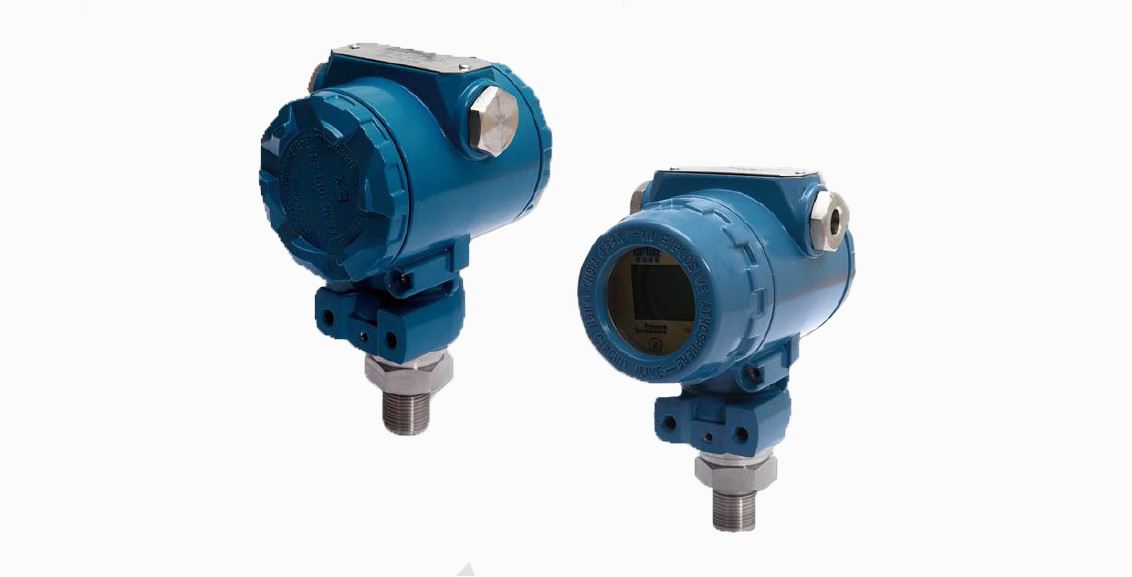

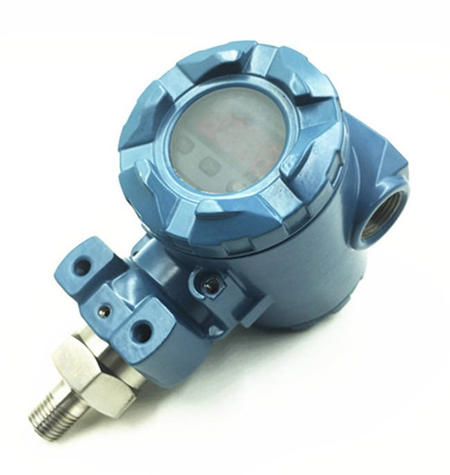

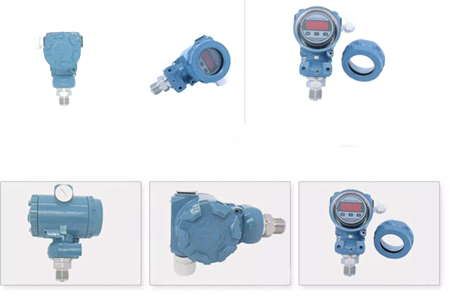

Pressure transmitter

Universal pressure transmitter

With reverse polarity and current limiting protection
Laser resistance temperature compensation
Zero and range can be adjusted on site
Strong overload and anti-interference ability, stable performance
Product description: RST2088 pressure/level transmitter output signals 4 ~ 20mA, 1 ~ 10mA, 0 ~ 5VDC. Products can be used for the measurement of gas, liquid and vapor pressure and corrosive medium pressure measurement. Ac
INQUIRY

Products Description
The 2088 series pressure transmitter adopts piezoresistive silicon oil-filled sensor as signal measuring element. The signal processing circuit is housed in the stainless steel housing and converts the sensor signal into a standard output signal. All products have passed component and semi-finished product testing, and finished product aging screening, with stable and reliable performance. Strong anti-interference ability, can work under harsh environmental conditions for a long time

Specification

Measurement Range	-0.1….0~0.01... ~100MPa
Proof pressure	≤1.5X rated pressure or 110MPa which ever is less
Pressure type	Gauge, absolute ,sealed gauge
Accuracy	±0.25%( Typical) ±0.5%( Max.)
Long term stability	±0.2%F.S/year
Operating Temperature Range	-20℃~80℃
Storage Temperature Range	-40℃~120℃
Power supply	15~30VDC

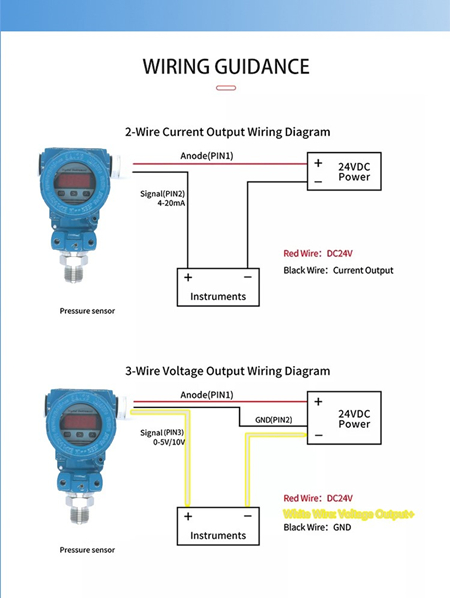

Output signal	4~20mA 0~10/20mA 0/1~5VDC
Pressure port	M20×1.5 or customize
material	1Cr18Ni9Ti stainless steel
Diaphragm material	316L
O-ring	Fluoro rubber
Electrical housing	Cast aluminium alloy(2088housing)
Insulation resistance	100MΩ,100VDC
Protection	IP65
