Pressure transmitter

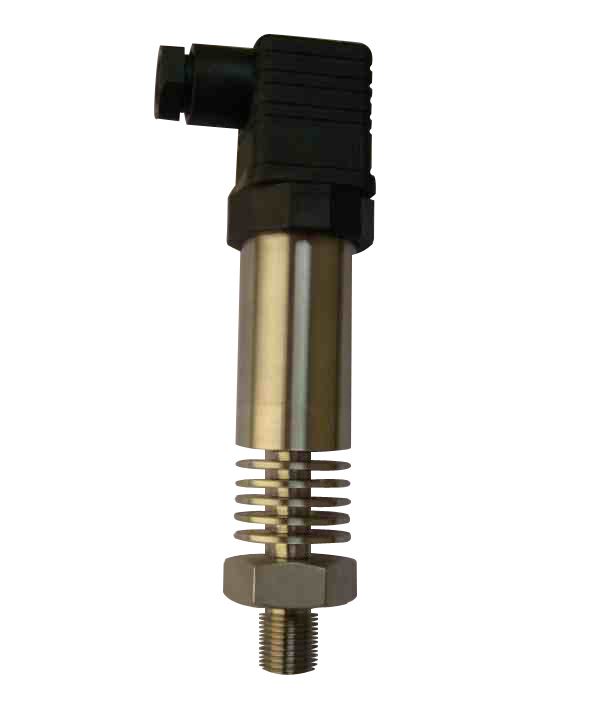

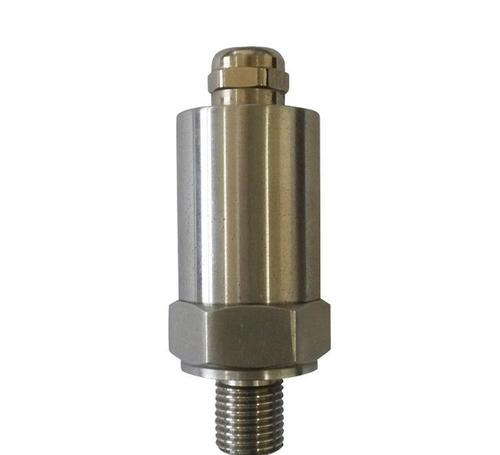

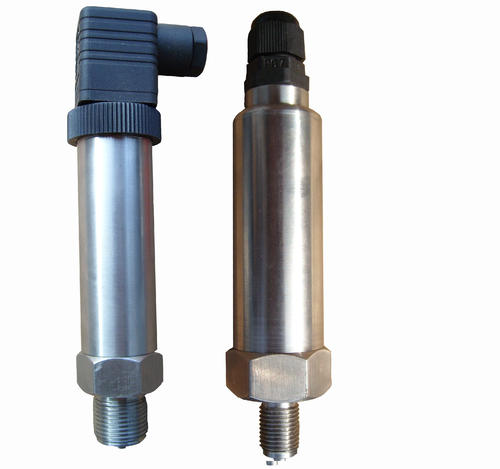

Compact pressure transmitter

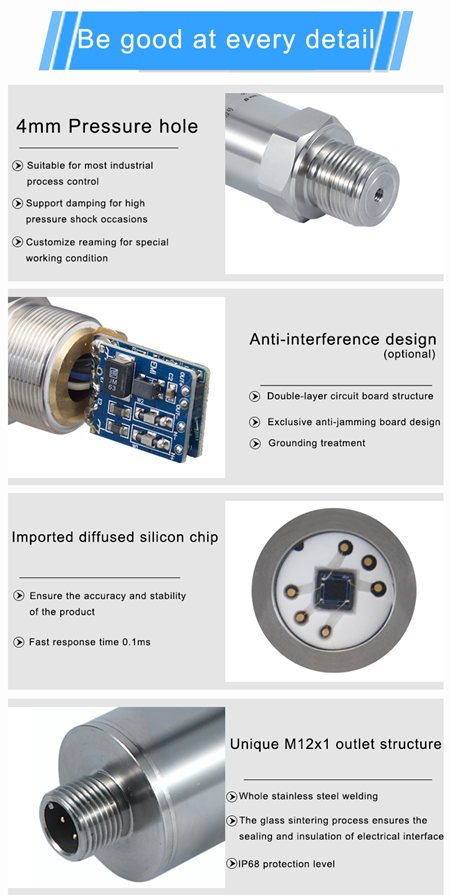

316L stainless steel diaphragm structure
Reverse polarity and current limiting protection
Anti - vibration, anti - impact, anti - RF electromagnetic interference
Overload and anti - interference ability is strong, economical and practical stability

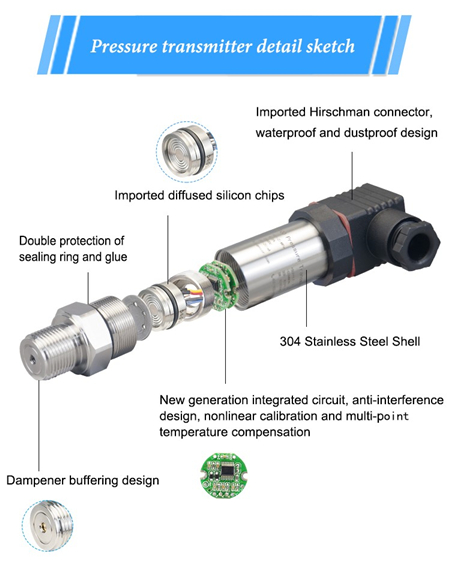

Product description: RST-121 compact pressure transmitter uses a high performance pressure sensor chip, with advanced circuit processing and temperature compensation technology, the pressure change into a linear current o
INQUIRY

Products Description
RST1100 series of pressure sensors are cost-effective products designed for high volume, low cost industrial and civil pressure measurement field. The pressure sensor adopts imported pressure sensitive components, digital compensation amplifier circuit with microprocessor, laser welding and packaging process of stainless steel housing, built-in anti-radio frequency and anti-electromagnetic interference circuit, with high precision, high reliability, small size, vibration resistance, anti-interference, strong ability feature and so on. This series of products offers a variety of mounting thread and electrical connection for customers to choose.

Specification

Measuring Medium	Liquid, Gas or Steam
Pressure Range	-100kPa~0~10kPa~10MPa~100MPa
Accuracy	0.5%FS/ 0.2%FS/ 0.1%FS/ 0.075%FS
Pressure Type	Gauge/ Absolute/ Sealed gauge
Supply Voltage	5V/24V/220V DC
Output Signal	4~20mADC, 1~5VDC, 0.5~4.5V, 0~10V
Electrical Connection	M12×1, DIN43650, Cable Outlet
