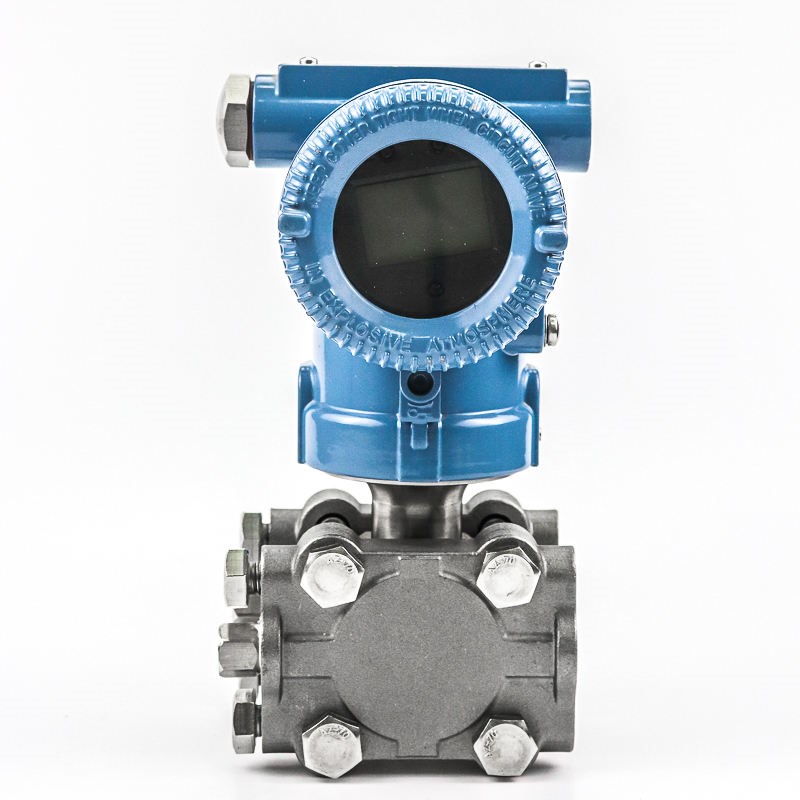

3051 intelligent pressure transmitter

Product description:
INQUIRY

Products Description
The 3051 intelligent pressure transmitter adopts advanced sensor technology and self-developed high-performance digital circuit, which is the new one of our company.
Generation of intelligent pressure transmitters. In principle, a dedicated digital processing chip is used to perform temperature and static pressure using digital compensation techniques.

Compensation to improve measurement accuracy while reducing temperature effects. The sensor that breaks through the traditional design concept is integrated with the dedicated chip circuit.

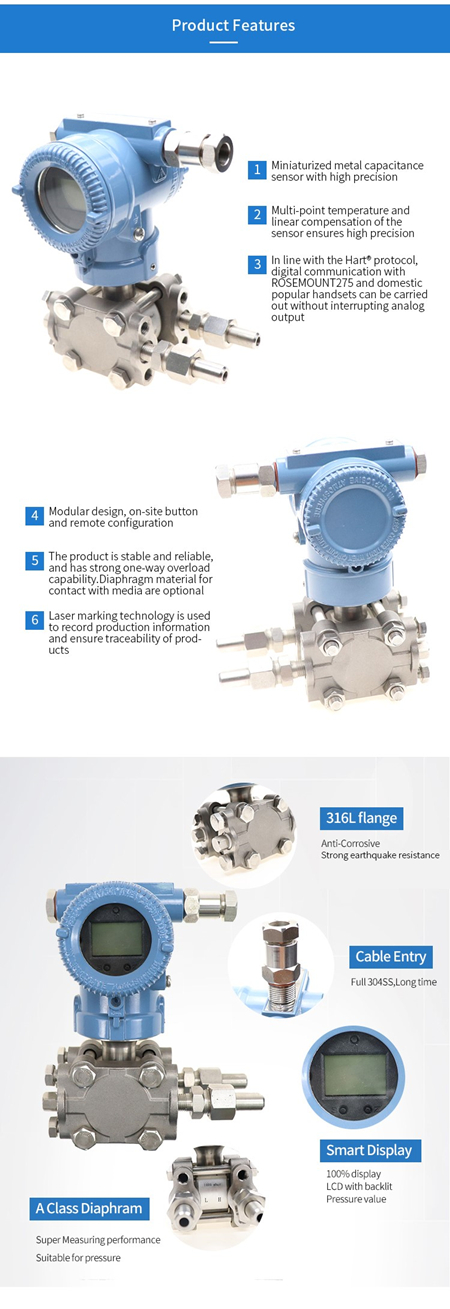

The transmitter has the characteristics of high precision, small size, light weight, convenient adjustment, high reliability and long-term stability.

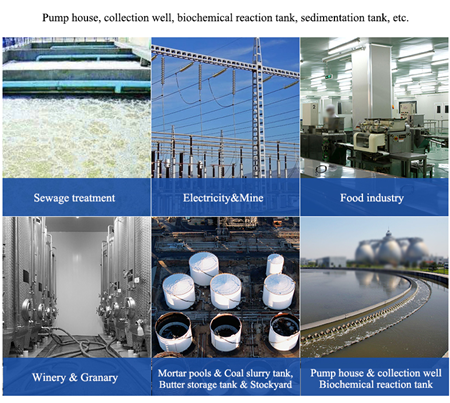

RST3051 intelligent pressure transmitter has complete specifications, easy installation and use, safety and explosion protection, and can be widely used in petrochemical and electric power.
In the industries of force, metallurgy, pharmaceutical, food processing, etc., the products conform to the national "IEC" standards.

Specification

Medium	liquid, gas and steam
Measuring Range	0~0.1kPa to 0~40MPa
Output	4~20mA DC+HART protocol
Accuracy	±0.1%FS
Range and null point	Adjustable
Power Supply	12~45V DC, generally 24V DC
Protection	IP65
Storage Temperature	-40~+125°C
Overload Limit	150%-200% of rated range
Load Resistance	750Ω(See below diagram 1 for load characteristic )
Relative Humidity	5~95%
Converter housing	Low copper cast aluminum alloy with Polyurethane paint
Fill Fluid	Silicon / Fluorine Oil
Process Connections	1/2NPT, 1/4NPT
Static pressure	4, 10, 25, 32Mpa
Mounting	Directly supported by piping or optionally with mounting bracket for 2" pipes or with direct or remote seals. 3-way valve
Maximum positive shift	500% of minimum adjusting span
maximum negative shift	600% of minimum adjusting span
Material	Flange/Adaptor	Stainless Steel 316/ Monel / Haste alloy/Carton Steel
	Drains/Vents	Stainless Steel 316/Monel / Haste alloy
	Diagrams	Stainless Steel 316/Monel /Haste alloy C/ Tantalum
	Wetted O-Ring	Viton / Buna-N
	Seal O-Ring	Viton / Buna-N
	Bolts & Nuts	Carton Steel/Stainless Steel316
