Pressure transmitter

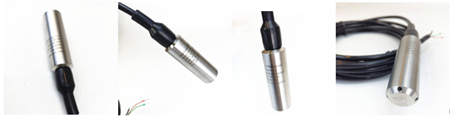

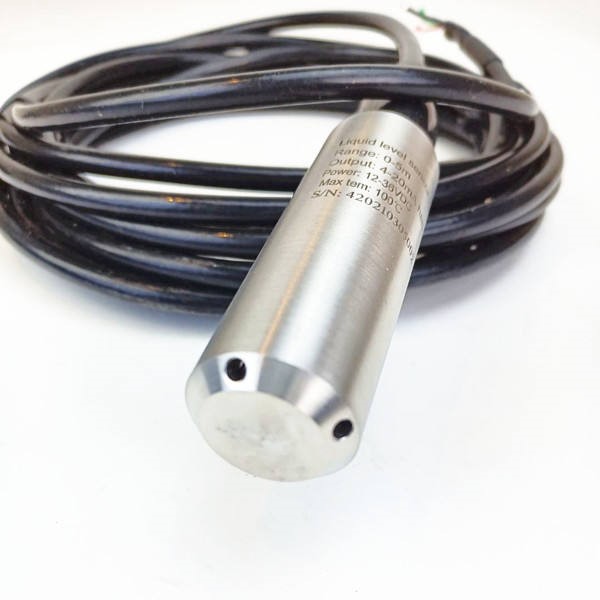

Submersible type water level sensor transmitter

Product description:
INQUIRY

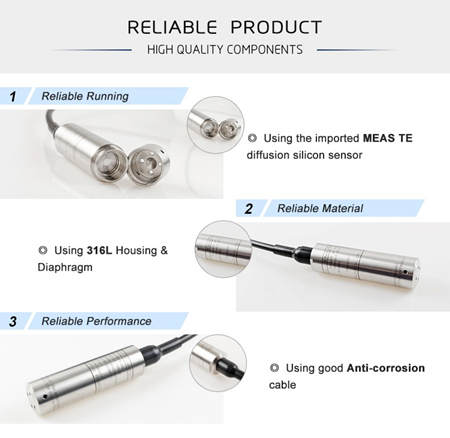

Submersible type water level sensor transmitter is comsed of full sealed isolation membrane filled level sensor and special instrument circuit. With the advantages of high measuring precision, good stability, long service life, convenient installation, etc.With unique technology of sealing structure form, and good anti-leakage performance, immersed in a liquid reliable operation for a long time.

Specification

Range	0-0.5M....500m H2O optional
Output	4-20mA,0-5v,0.5-4.5v ,RS485,RS232 ,Hart
Power supply	12v DC~30VDC
Accuracy	0.15%F.S,0.25%F.S,0.5%F.S
Working temperature	-30℃~+ 85℃
Temp compensation	-10℃~+ 60℃ or by customized
Zero temp. drift	0.03%FS/℃；0.02%F.S/℃（＞100Kpa）
FS temp drift	0.003%F.S/℃（≤100Kpa）;0.002%F.S/℃（＞100kpa）
Electronic connection	Fixed cable and waterproof IP68
Response time	≤4 to 10 ms ;≤ 1 ms (customized)
Cable	PE /PUR /PTFE cable with vents

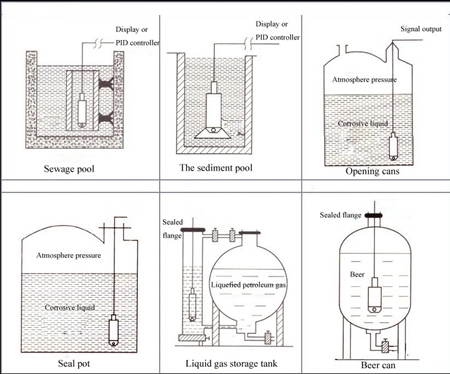

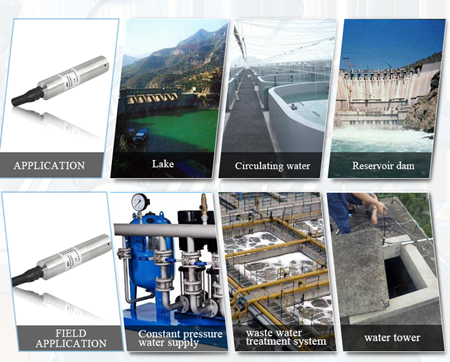

Application	Liquid measuring in tanks ,rivers ,lake ,sea,well
