Open Channel Ultrasonic Sewage Flow Meter

Product description:
INQUIRY

Products Description
Open channel ultrasonic sewage flow meter is a high precision using the ultrasonic measurement of Venturi channels or other flow meter, ultrasonic measurement in contact with the channel surface bounce back after the time, then according to the formula to calculate the channel flow, it can provide output flow, the flow rate and total flow.

Specification

Item	open channel ultrasonic sewage flow meter
Flow range	0.1L/s~10m3/s (And determine the range with weir tank specifications)

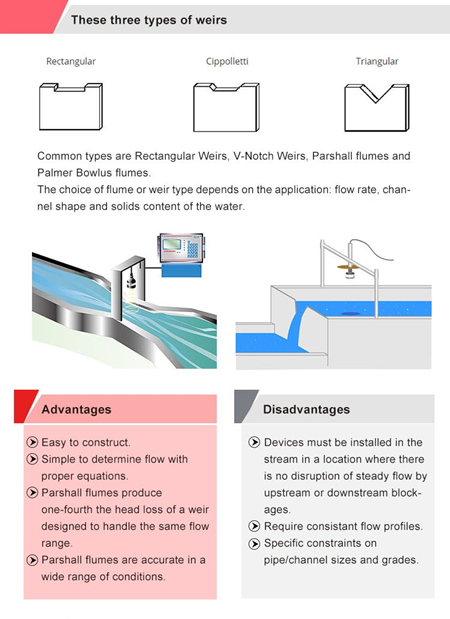

Weir trough type	Triangular weir, Rectangular weir, Full width weir, Parshall flume
Accuracy	±（1～3）%

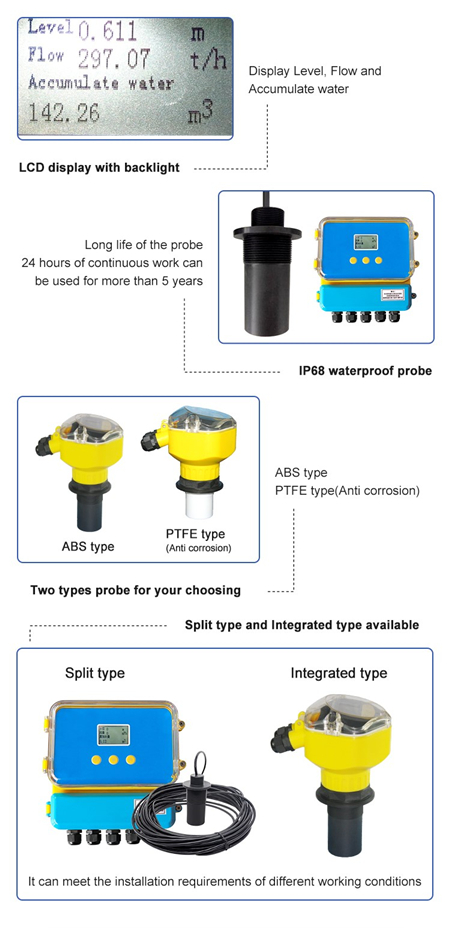

LCD Display	2.8 inches LCD display, it can display height of liquid level, Instantaneous flow rate, cumulative flow, time flow, daily flow, year flow, month flow, date, month and year.
Split Wire	10m ( Customizable length)
Protection grade	Header IP65, Probe IP68
Signal output	4-20mA /RS485 /Relay
Power	AC220V / DC24V
Working temperature	-20℃～55℃
