Vortex flowmeter

No moving parts long service life
Product description: The stress vortex flowmeter is a kind of velocity flowmeter. Based on the Karman vortex street theory, it uses piezoelectric crystals to detect the vortex frequency generated when the fluid passes thr
INQUIRY

Products Description

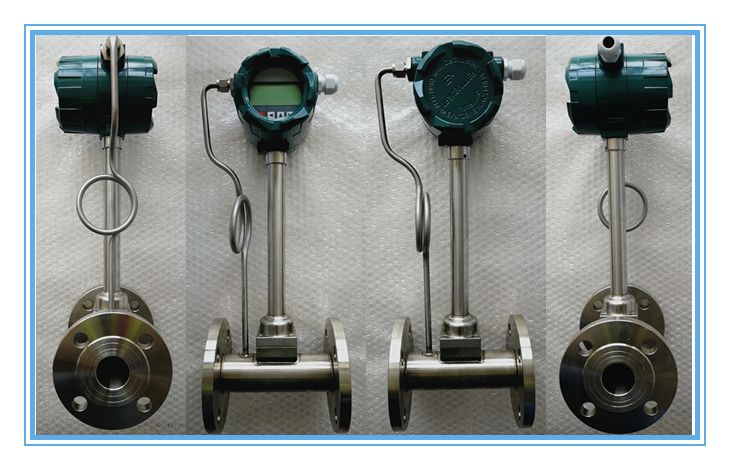

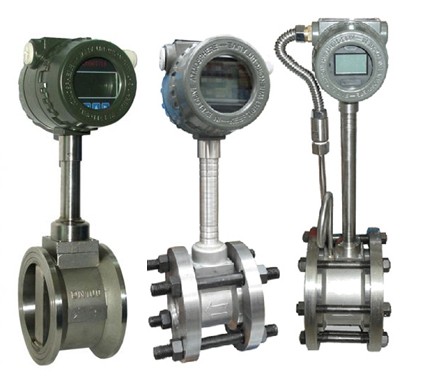

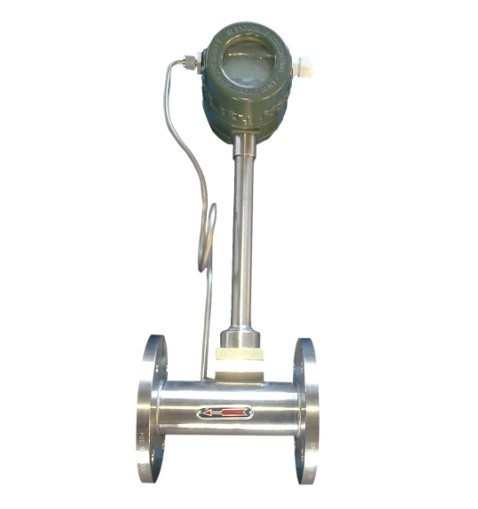

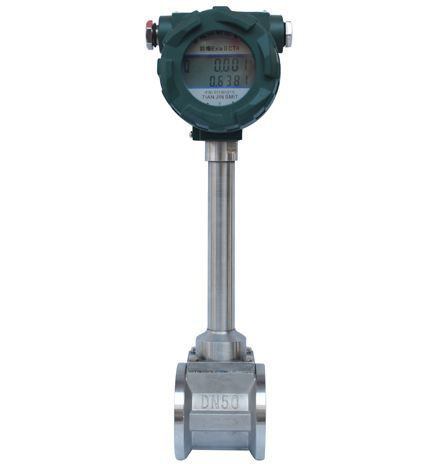

Vortex Flow Meter:

1. Vortex Flow Meter has a wide measuring range, high precision, small pressure loss, high reliability and long-term stability
2, the structure is simple, easy to install and maintain, no moving parts, no mechanical wear.
3.Unique design of the amplification board, gas or liquid can be used.
4.Can be long-distance transmission of flow signals, and computer networking, centralized management; It
has a variety of data transmission methods, including 4-20ma output, frequency output, RS485 output.

Specification

Name	Propane Gas Methane Vortex Flow Meter
Measured Medium	Liquid;Gas;steam;oxygen;biogas; air;overheat steam
Medium Temp.	-40~+250℃;-40~+350℃ （high temperature probe）
Nominal Pressure	1.6MPa; 2.5MPa; 4.0MPa; 6.4MPa (Other pressure can be customized)
Accuracy	±1.0%, ±1.5%
Specifications	DN15~DN300mm (flange); DN200-3000mm (insertion type)
Sensor Material	Carbon steel, SS304, SS316L
Protection grade	IP65, IP68
Ex-proof class	Exd IICT6 Gb
Power Supply	12-24V/DC or 3.6V battery powered
Signal Output	Pulse, 4-20mA, Hart, RS485
