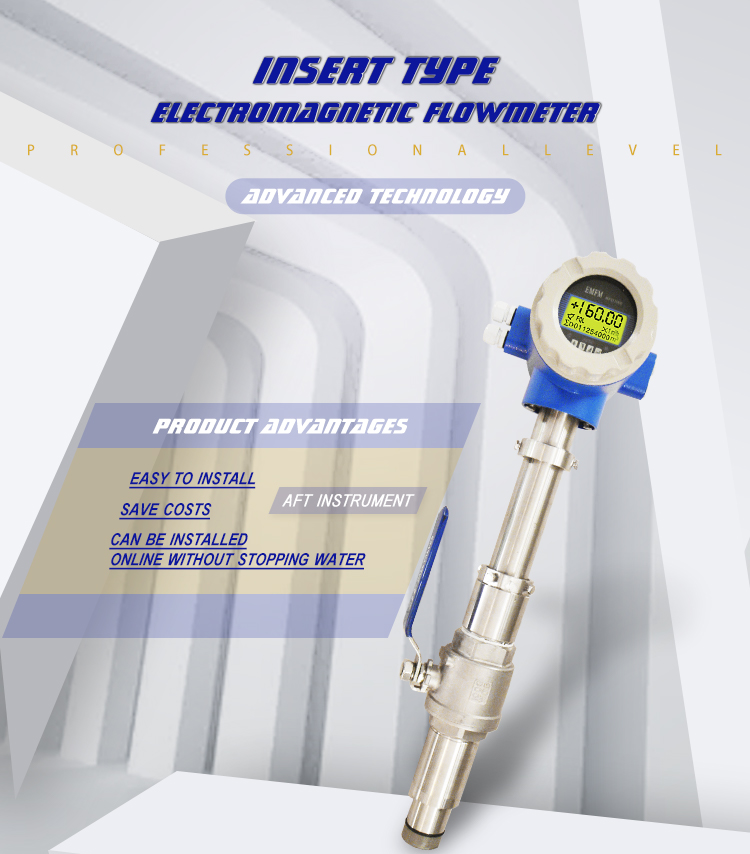

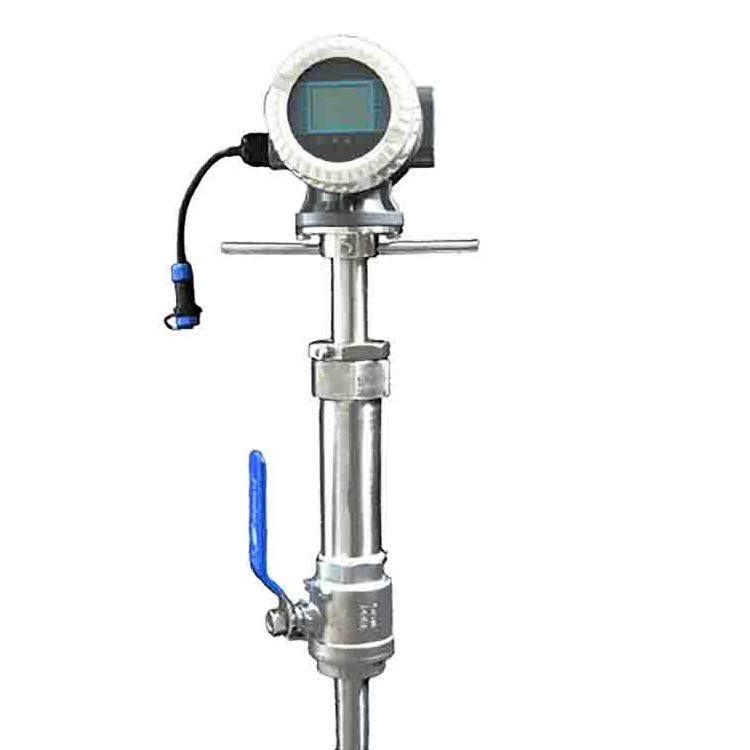

Insertion electromagnetic flowmeter

Simple sensor structure
Measurable corrosion resistance, resistance to dirty and turbid suspension liquid-solid two phase flow of traffic
Volumetric flow measurement
No mechanical inertia, sensitive reaction
Product description: Electromagnetic flowmeter is a flow meter based on Faraday's law of electromagnetic induction. It is used to measure conductive liquid and slurry in closed pipe Volume flow of liquid. It is widely
INQUIRY

Products Description

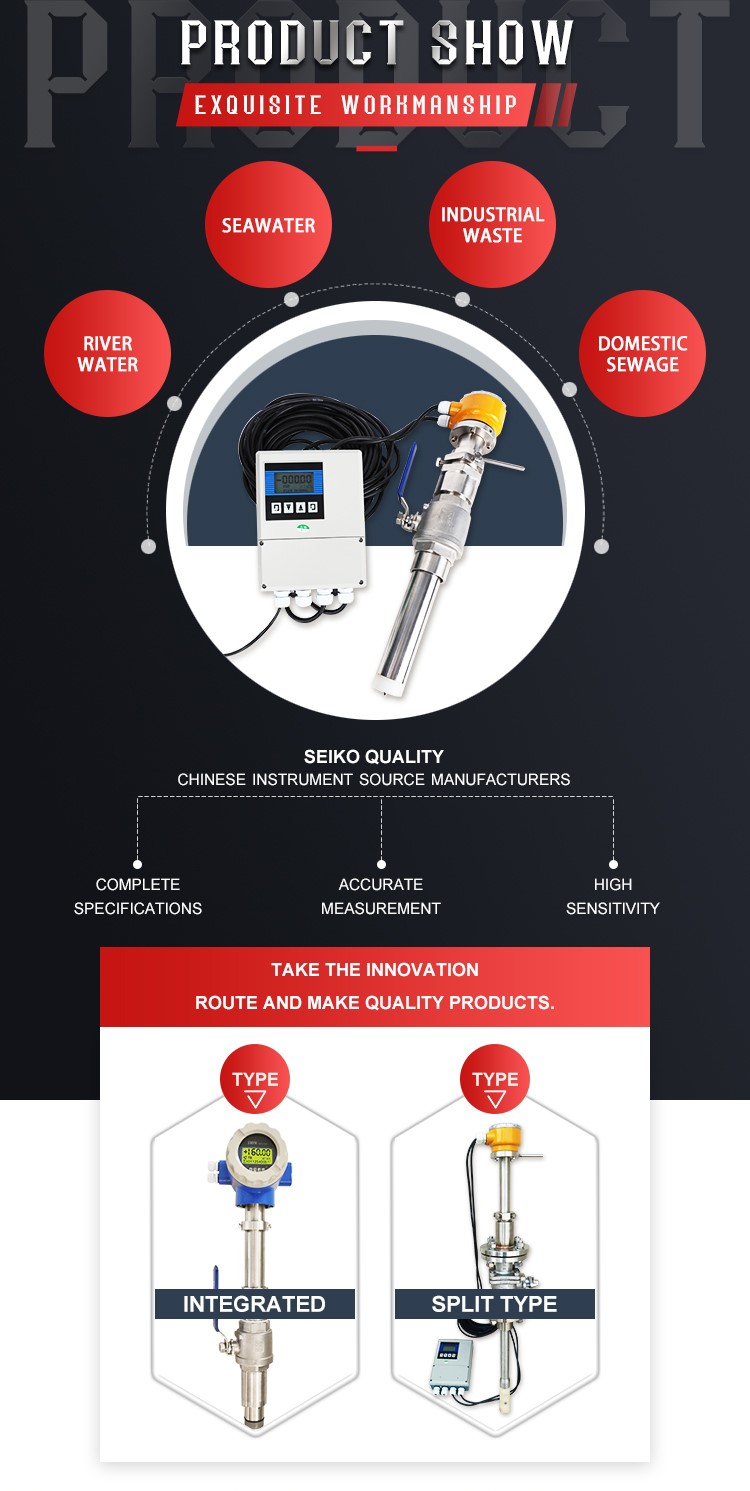

Plug - in electromagnetic flow sensor (sensor) and electromagnetic flow converter (converter) form a complete set.

The inserted electromagnetic flowmeter (" flowmeter ") is used to measure the volumetric flow rate of various conductive liquids in the conveying pipe.

Product name	Insertion electromagnetic flowmeter
Pipe size	DN100-DN3000
Pressure	0.6~1.6MPa
Temperature	-25~80℃

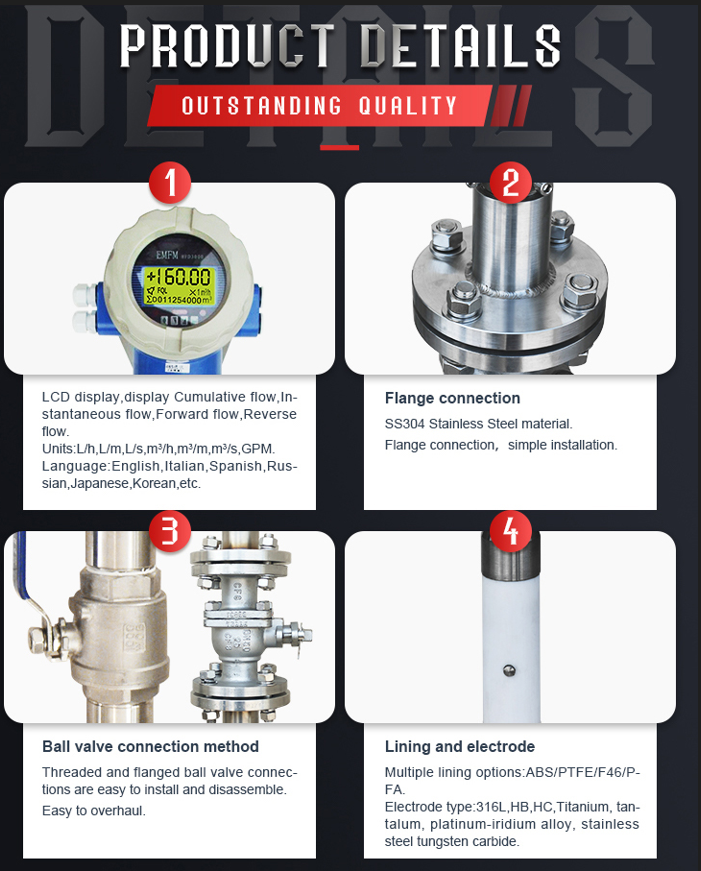

Lining	ABS, PTFE
Electrode material	316L, titanium, tantalum, platinum-iridium alloy, Hastelloy B, Hastelloy C
Power supply	85~265VAC,24V DC,3.6VBattery powered
Output	4-20MA, pulse, frequency, RS485, MODBUS, HART
Protection level	IP65,IP67,IP68
Accuracy	1.0%FS,1.5%FS
Display	LCD
