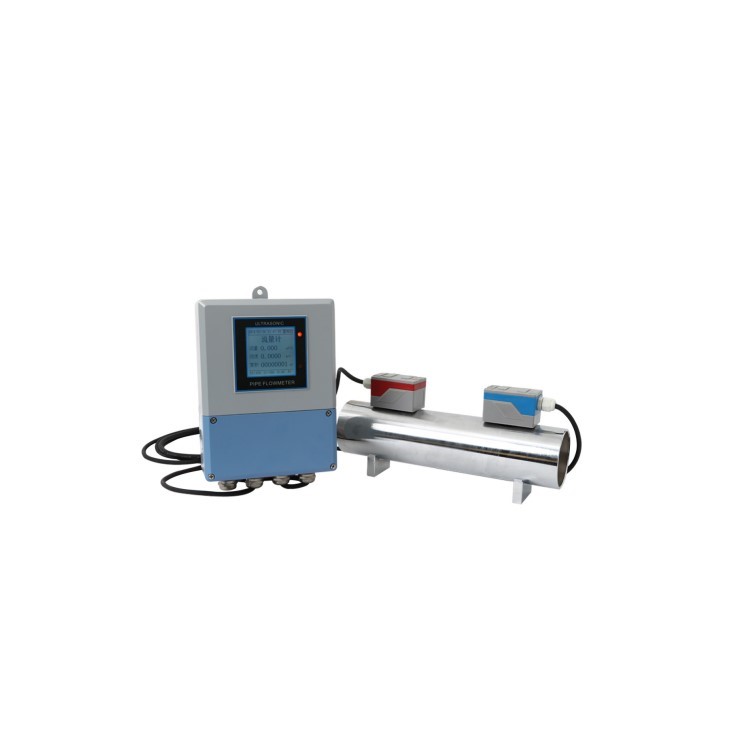

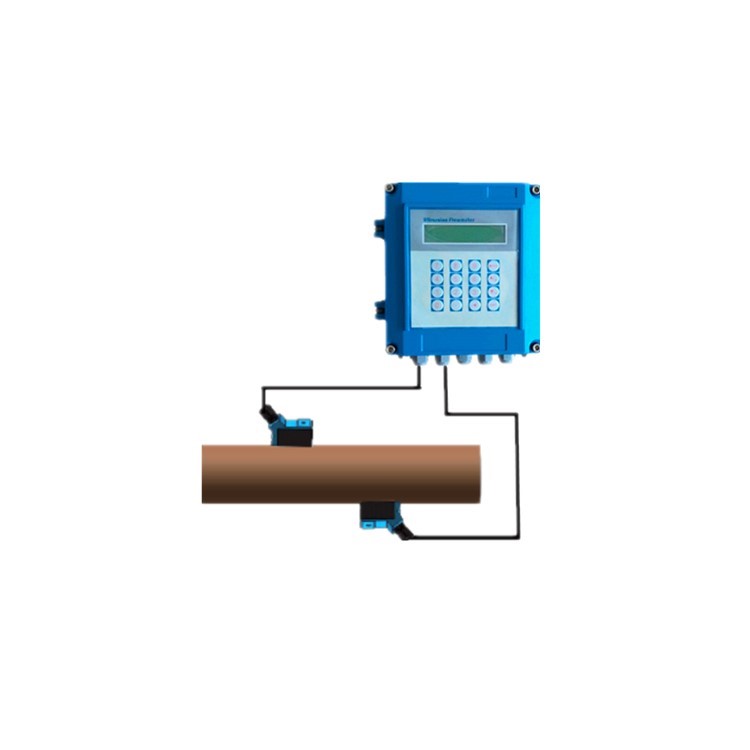

wall mounted ultrasonic flowmeter

Product description:
INQUIRY

Products Description
Ultrasonic flow meter uses the time difference principle of ultrasonic wave propagation in the medium to measure the flow rate.It is mainly used to measure liquid, such as ultra-pure liquid, chemical, raw sewage, reclaimed water, cooling water, river water, plant sewage, etc

Specification

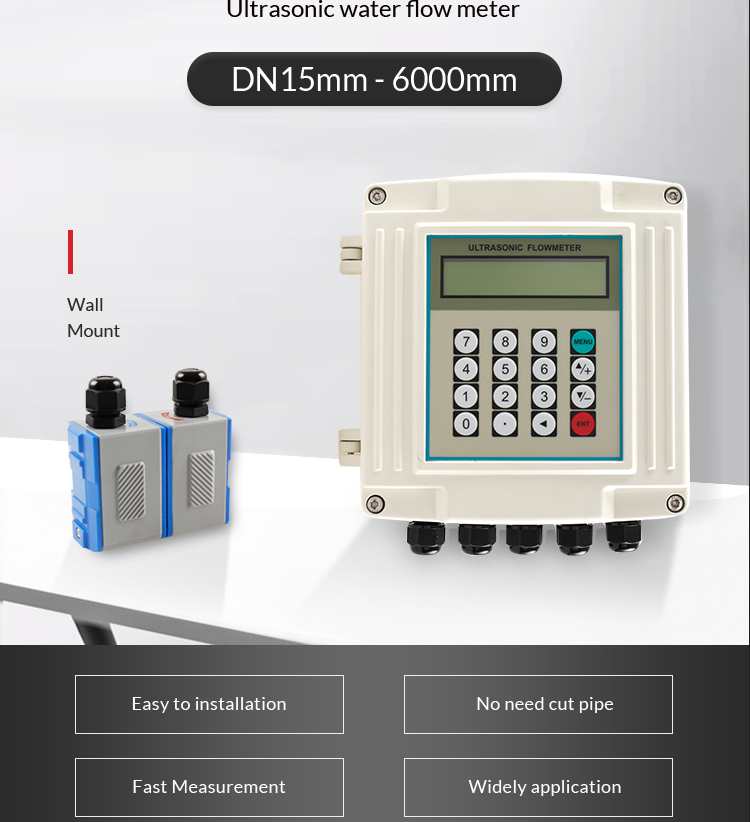

Pipe Size	DN 15mm~6000mm
Power Consumption	Less than 1.5W
Measuring Principle	Transit-time measuring principle
Power Supply	AC220V or DC24V
Output	Analog output, OTC output, Ralay output, RS485 serial port
Protocols	MODBUS, M-BUS, Fuji extended protocol and other factory protocol
Memory	Automatically record the totaliser data of the last 64 days / 64 months / 5 years

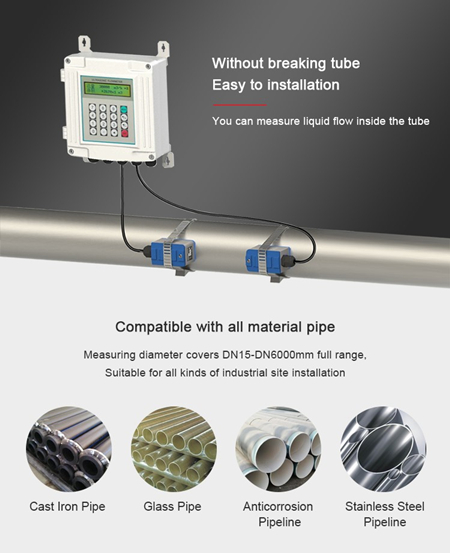

Pipe Material	Steel, stainless steel, cast iron, cement pipe, copper, PVC, aluminum, FRP etc. Liner is allowed
Accuracy	Better than ±1%
Repeatability	Better than 0.2%
Measurement Period	500ms

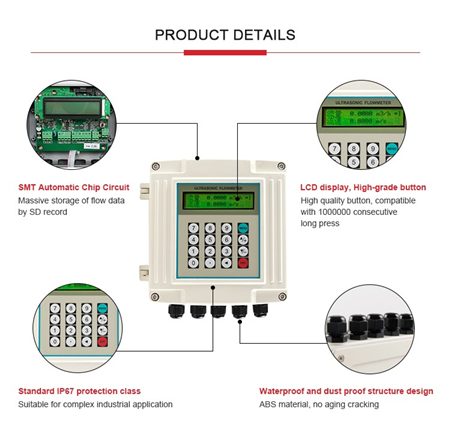

Display	LCD with backlight, display accumulated flow/heat, instantaneous flow/heat, time etc
Input	Three analogue input, Three-wire PT100 resistor input (optional)
Flow Direction	Bi-directional measuring, net flow/heat measuring
Temperature	Main Unit: -30˚C - 80˚C, Transducer: -40℃ -110℃, Temperature transducer: select on enquiry
