Flowmeter

Gas Measuring LPG Mass Flow Mete

Product description:
INQUIRY

Gas turbine flowmeter has high precision, small pressure loss, low initial flow, automatic tracking compensation for temperature, pressure and flow, battery powered, can output a variety of signals, imported bearings, long life, easy installation and maintenance. Intelligent speed type flow meter is a collection of flow, temperature, pressure detection function in one, and temperature, pressure compensation. Suitable for accurate measurement of gas content in gas and other industrial fields.

Specification

Nominal diametfer	DN15-300mm

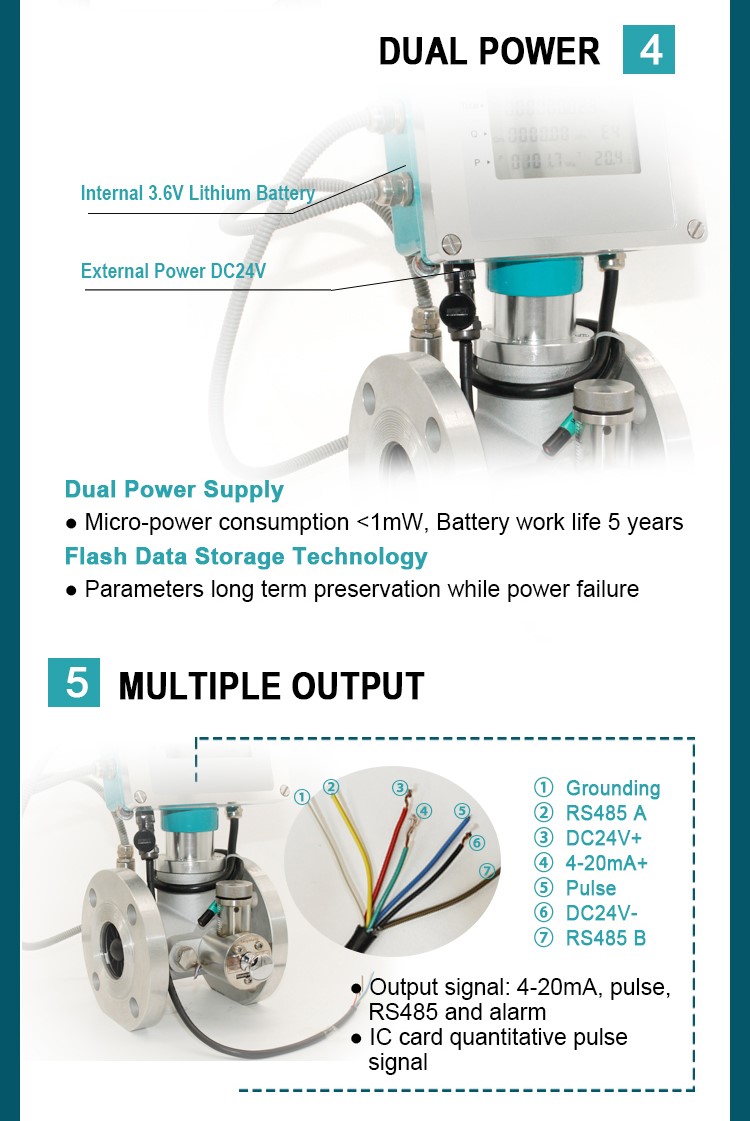

Power supply	24VDC+3.6V dual power supply
Sensor Material	SS304, SS316
Signal output	4-20mA, RS485, Hart
Accuracy	1.5%
Medium temperature:	-20℃-80℃
Impeller material	dual-phase steel
Oil injection pump	With/without
Explosion-proof processing	Exia IIC T6 Ga

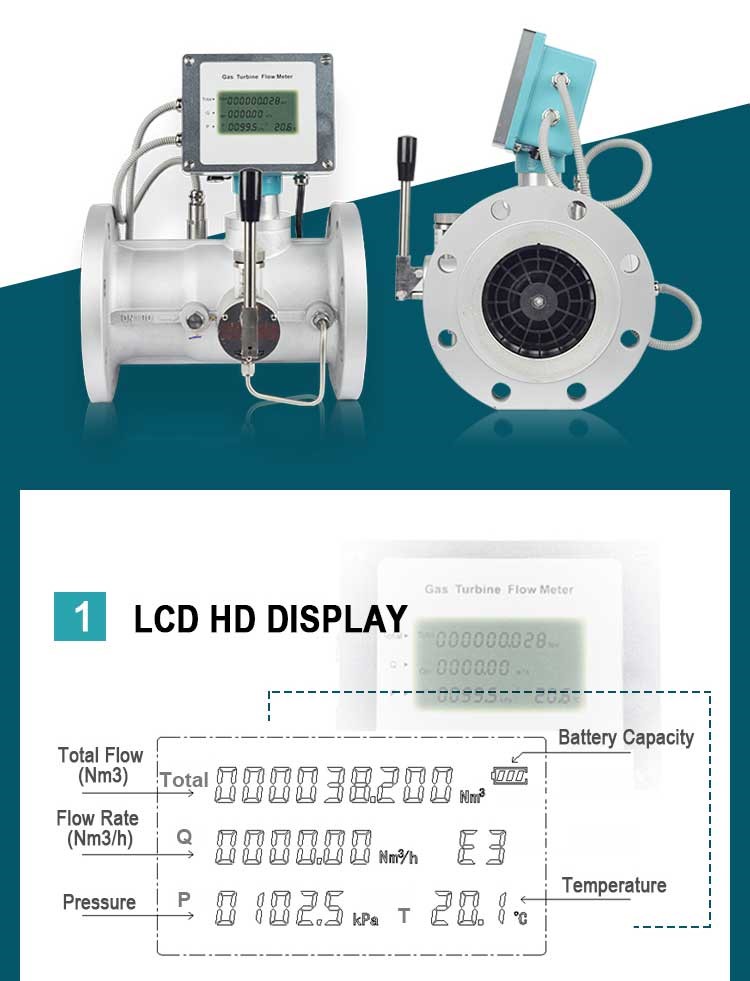

LCD backlight display	Display flow, temperature, pressure, battery capacity

Nominal diameter (mm)	Flow range (m³/h)
DN 25	4-40
DN 40	10-100
DN 50	16-160
DN 65	25-250
DN 80	40-400
DN 100	65-650
DN 125	100-1000
DN 150	160-1600
DN 200	250-2500
DN 300	650-6500
