Vibration equipment

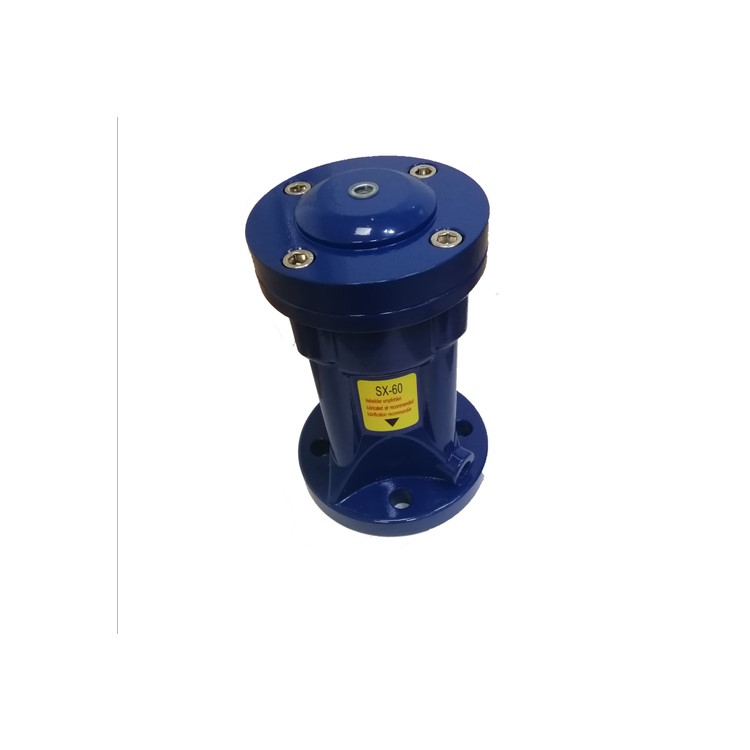

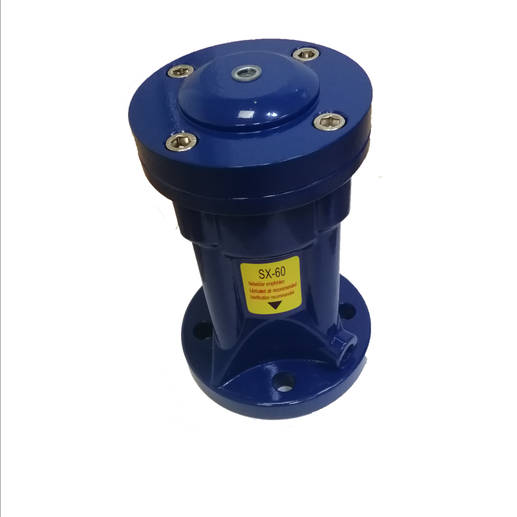

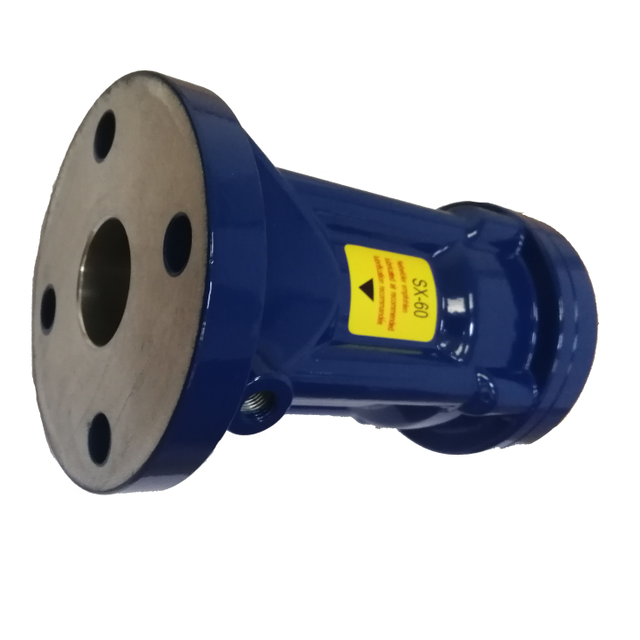

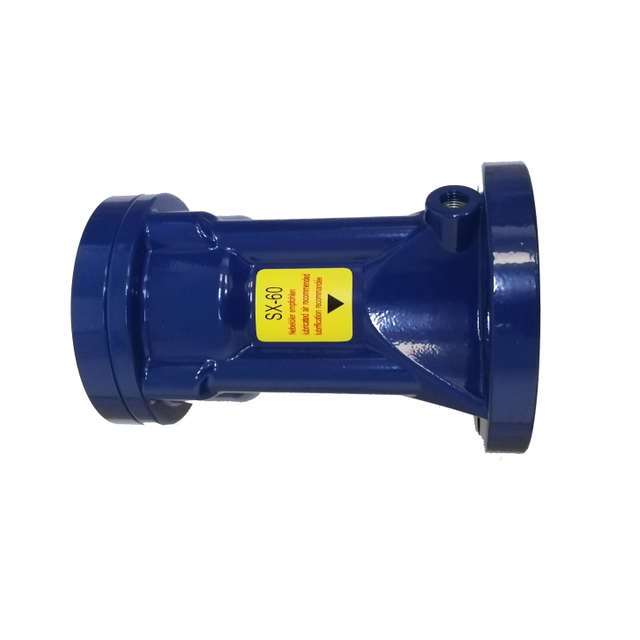

SK series impact hammer
- Frequency and shock interval is controlled by solenoid valves
- Can be used in extreme harsh environments
- Low pressure, strong impact
- It is used to dredge the hanging material of the material equipment and prevent the material from hardening
- Product description: It is used to dredge the hanging material of the material equipment and prevent the material from hardening
I. Product characteristics
1. High power and small amount of lubrication
2. Frequency and impact interval are controlled by solenoid valve
3. Can be used in extreme harsh environments
Ii. Typical applications
1, the bin, hopper, pipe, screen outlet
2. Eliminate material hanging in the container and empty the pipeline
3. Outdoor and high humidity occasions
Iii. Product structure
1, aluminum shell, corrosion resistance, containing special grease
2, long life guarantee, adapt to different applications
IV.Product parameters
|
Model |
Working pressure |
Air consumption |
Impact force |
Impact energy |
Weight |
|
MPA |
L/Time |
Kg·m/s2 |
N·m |
Kg |
|
|
SK-30 |
0.3-0.7 |
0.05-0.13 |
1.9 |
13 |
1.25 |
|
SK-40 |
0.3-0.7 |
0.15-0.37 |
4.2 |
22 |
2.20 |
|
SK-60 |
0.3-0.7 |
0.33-0.77 |
11.2 |
49 |
5.35 |
|
SK-80 |
0.4-0.6 |
0.60-1.40 |
24.2 |
109 |
11.20 |
|
SK-100 |
0.5-0.7 |
0.86-1.55 |
48.5 |
220 |
12.05 |
V.Product size
|
Model |
A |
B |
C |
D |
E |
F |
|
mm |
mm |
mm |
mm |
mm |
mm |
|
|
SK-30 |
9 |
67 |
82 |
135 |
G1/4 |
G1/8 |
|
SK-40 |
11 |
75 |
98 |
175 |
G1/4 |
G1/4 |
|
SK-60 |
12.5 |
105 |
143 |
220 |
G3/8 |
G1/4 |
|
SK-80 |
17 |
140 |
170 |
275 |
G3/8 |
G3/8 |
|
SK-100 |
17 |
150 |
195 |
310 |
G3/8 |
G3/8 |
