Vibration equipment

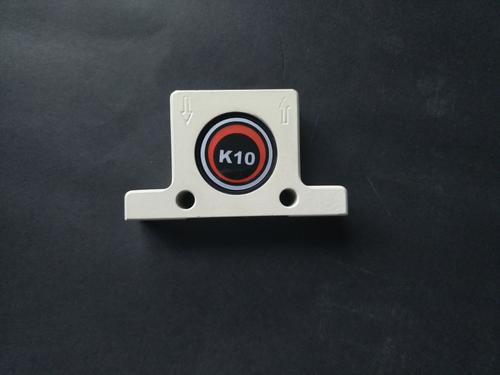

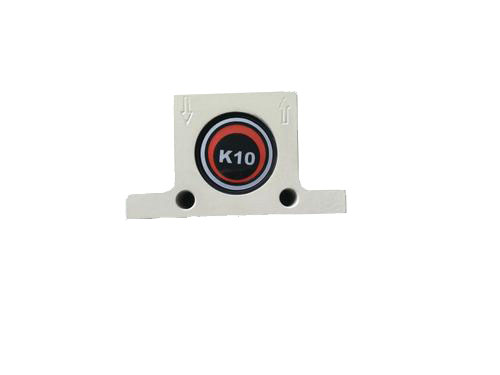

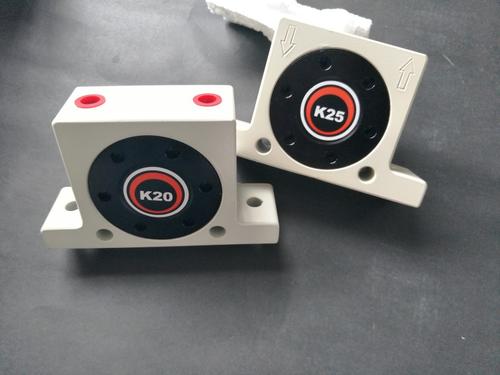

K series pneumatic ball vibrator
- High power
- Vibration of 132 ~ 4100 Newton
- Continuous adjustable parameters
- The highest use temperature 150 ℃
- Product description: Through the alloy ball rolling on the alloy raceway to generate vibration force, both ends of the nylon end cover to support the ball and prevent dust and water; Housing with horizontal mounting holes
I. product characteristics
1. High power
2. Nominal frequency: 7300~35000 RPM
3. The vibration of 132 ~ 4100 Newton
4. Continuous adjustable parameters (adjust air pressure)
5. Maximum operating temperature: 100℃
6. Can be customized 150℃ products
Ii. typical applications
1. Shaking table
2. Filter sieve
3. Empty the granary
4. Material conveying
5. Prevent wall hanging of pipeline feed bin
III. Product structure
The vibration force is generated by the rolling of the alloy ball on the alloy raceway. Both ends of the nylon end cover support the ball to prevent dust and water, suitable for different occasions.
Iv.Product performance
V.Product size
