Vibration equipment

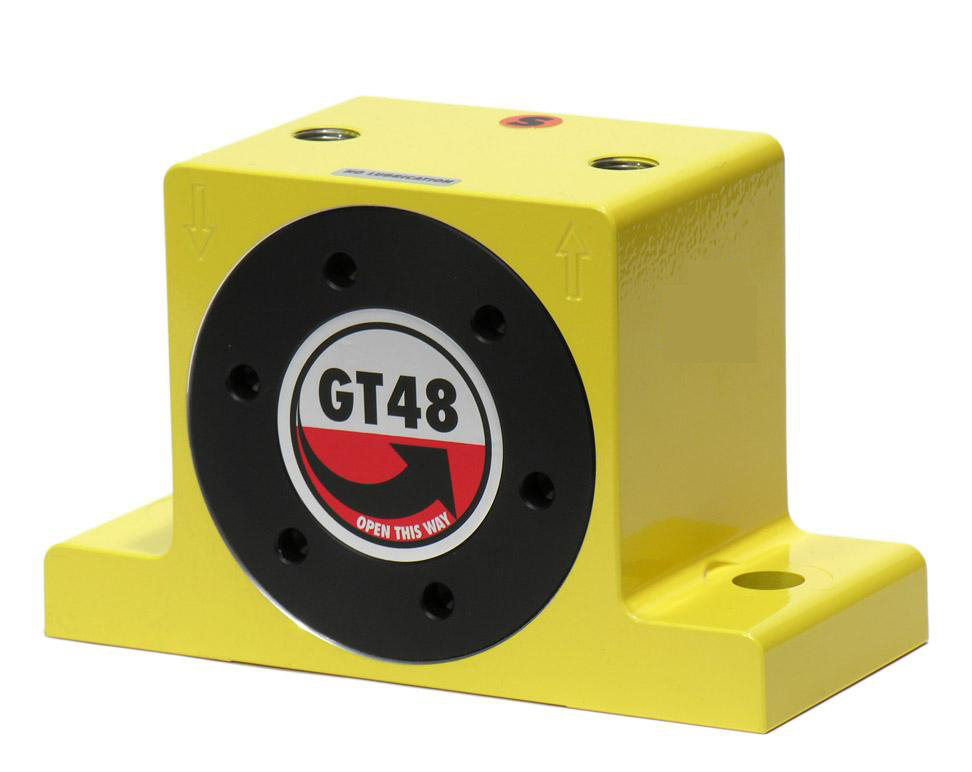

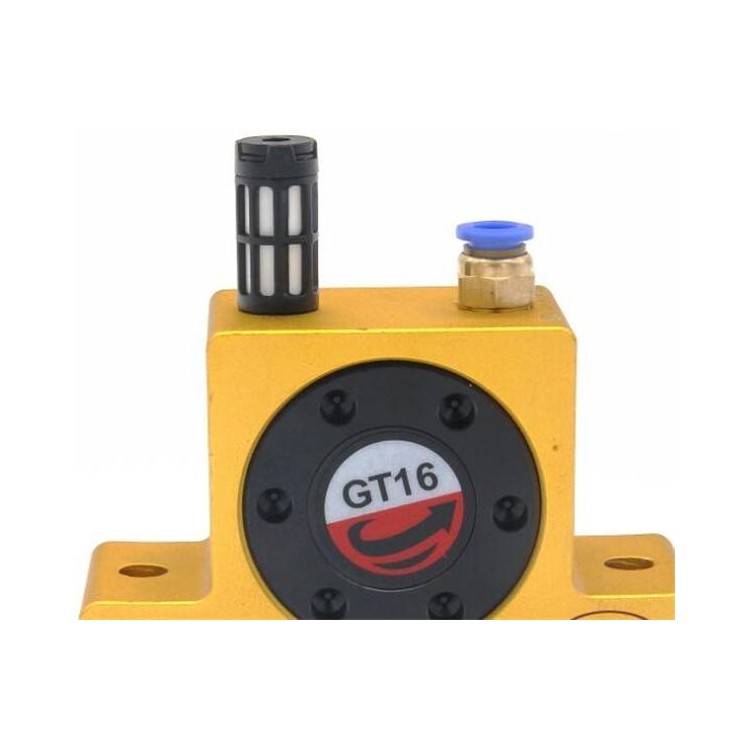

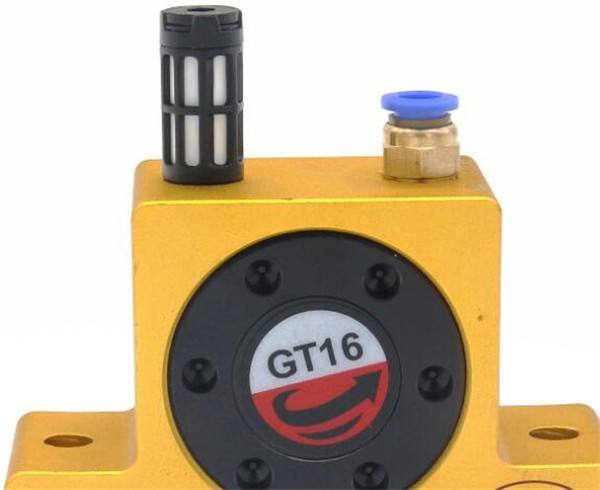

GT series turbine vibrator

High power, no lubrication, very quiet
Nominal frequency 5800~ 46,000 RPM
Maximum operating temperature 150℃, can be customized 200℃ products
Can be used in extreme environments
Product description: Through the positive and negative unbalance torque on the runner, the vibration is generated. The runner is supported by a pre-lubricated fully enclosed ball shaft, and the bearing contains special gr
INQUIRY

I. product characteristics
1. Large power, no lubrication, extremely quiet
2. Nominal frequency: 5,800-46,000 RPM
3. Vibration power 135-10600 Newton
4. Continuous adjustable parameters (adjust air pressure)
5. Maximum operating temperature: 150℃
6. 200℃ products can be customized
7. Can be used in extreme environments
II. typical applications
1. The vibration table
2. The filter screen
3. Empty silo
4. Material conveying
5. Prevent wall hanging of pipeline feed bin
III. Product structure
The vibration force generated by the positive and negative unbalance and torque of the runner; The runner has pre-lubricated fully enclosed ball shaft support, bearing contains special grease; Long life guarantee, suitable for different occasions.
