Level gauge

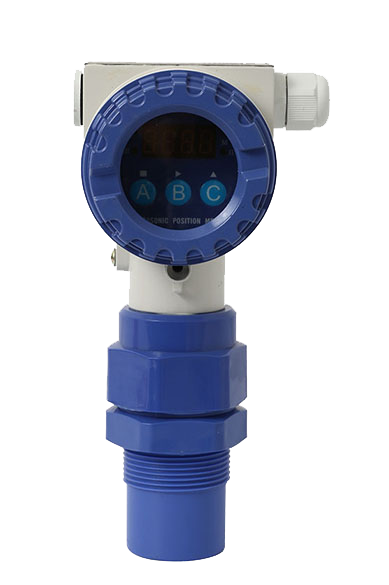

General purpose ultrasonic object (liquid) position meter

General purpose ultrasonic object (liquid) position meter

Backup and restore functionality
can measure the distance as well as the object level
The starting and ending points of the range are set arbitrarily
Realize the Internet of Things
Product description: RSTMH-A universal ultrasonic level meter is a kind of universal ultrasonic level meter, which absorbs the advantages of many kinds of level meters at home and abroad. It is a universal type of object
INQUIRY

MH- SENSOR explore proof ultrasonic level sensors have beautiful appearance, stability performance; explore proof design and good measurement function. Isolated power supply by industrial instruments, all of the output, input lines with lightning protection, over voltage, over current protection circuit functions. Transmitter function of small, weak energy, high sensitivity, bearing small; a complete sensor system can accurately complete the objects in different environments continuous non-contact measurement; small blind, high accuracy, wide application, send and receive integrated, which can accurately receive weak echo signals to ensure the accuracy and reliability. MH- explore proof Ultrasonic Level Sensor is a safe, clean, high precision, long life, stable and reliable, easy installation and maintenance ease of use easy to read and so on.

Functions	Integrative Type
Level Range:	Economic Type: 5M, 10M, 12M. Standard Type: 5M, 10M, 15M, 20M, 30M, 50M.
Accuracy:	0.25%-0.5%F.S
Blind Zone:	0.2-0.6m
Working Pressure:	2 Bar (Explore Proof Type is 5 Bar)
Resolution:	3mm or 0.1%F.S (Max of them)
Display:	English language display:Level measurement, distance measurement, transmission value, ambient temperature, echo state, alarm display, algorithm selection.
Analog Output:	4~20mA/750Ω load resistance (2 wire) 4~20mA/250Ω load resistance (4 wire) 1~5 V (3 wires) 0~5 V (3 wires) 0~10 V (3 wires)
Relay /Alarm Output:	AC 250V/ 8A; DC 30V/ 5A; State programmable (optional for 4 wire)
Power Supply:	24VDC 120mA 12VDC (available to offer power by motor, battery or solar power and so on.)
Environment Temperature:	Meter: -20~+60℃ Sensor: -20~+80℃
Communication:	RS485 Communications (optional)
Explore Proof:	Ex(ia)ⅡCT6
Water Proof:	Economic Type: IP65 Standard Type: IP66
Cable of Sensor:	Null
Sensor Installation:	By level range and model code
Store Request:	Temperature: -20~+80℃ Pressure: atmospheric pressure Humidity: ≤90%RH Others:Non-corrosive gases (optional corrosion probe) or steam, no vibration.
