Small blind area ultrasonic level gauge

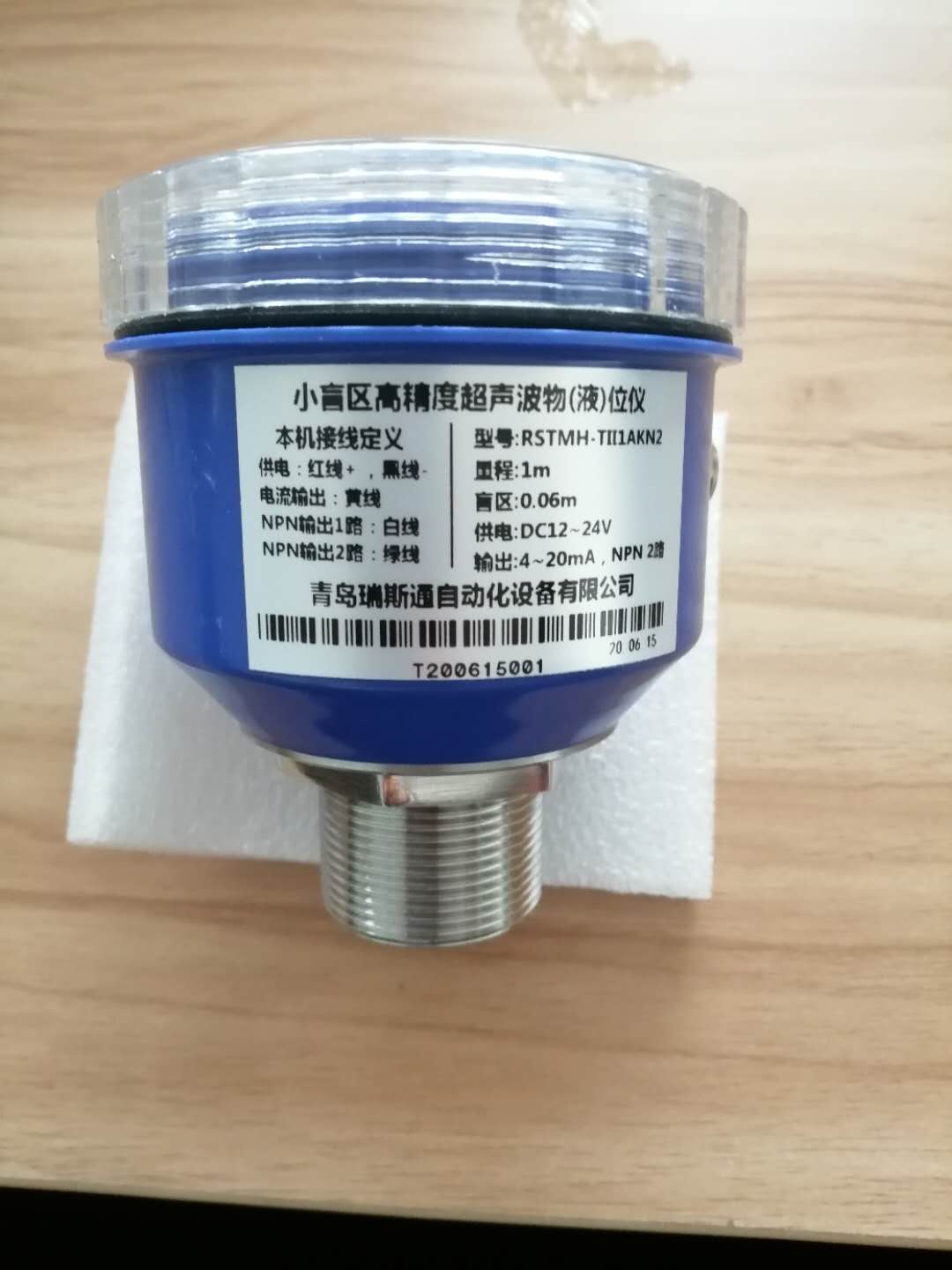

RSTMH-T series of high precision small blind area ultrasonic object (liquid) position instrument is specially developed for small blind area, high precision, small space of the working condition measurement and control. The case is ABS engineering plastic waterproof case, the probe part is PP or stainless steel, the case is small and quite strong; Transparent host cover design for easy observation and display. The main chip adopts imported industrial-grade single chip microcomputer, digital temperature compensation and ultra-wide voltage input voltage regulator and other dozens of relevant special-purpose integrated circuits, so that the product performance is more stable and reliable. It has strong anti-interference, can be arbitrarily set upper and lower limit nodes and online output adjustment through the upper computer software, can choose analog quantity, switching quantity and RS485 output, convenient and related facilities interface. It has high reliability, no pollution, stable performance, no contact with industrial media can meet most of the liquid level, material level measurement requirements. The shortcomings of traditional measurement methods such as pressure type, capacitance type and float type, such as winding, blockage, leakage, dielectric corrosion and inconvenient maintenance, etc., have been completely solved. Therefore, it can be widely used in various fields related to material level and liquid level measurement and control.

The performance characteristics of

Rugged and stable sensors are suitable for harsh industrial situations

★ Strong anti-interference, can arbitrarily set the upper and lower limit nodes and online output regulation
The transducer has built-in temperature sensor to realize real-time automatic temperature compensation of measured value
★4~20MA current output, optional fieldbus interface
Domestic first 0.06m small blind area liquid level gauge
Application field
☆ Water and sewage treatment pump room, well collection, biochemical reaction tank, sedimentation tank, etc
☆ Power, mine mortar pool, coal slurry pool, butter storage tank, storage yard or part of the mobile equipment control
☆ Food industry winery, granary, food materials filled tank and so on
☆ Control system supporting use
Performance indicators
Range: 1m, 2m (selected when ordering)
Blind area: <0.06-0.15m (different from range)
Emission Angle: less than 6° (depending on the sensor)
Minimum display resolution: 1mm
Maximum error: less than ±1mm, less than ±1.5mm (different from range)
Operating frequency: 40KHz ~ 430.0KHz (depending on the type and specification)
Temperature compensation: Automatic temperature compensation
Display: 4-bit 8-segment LED digital tube, OLED Menu in English and Chinese (with self-illumination)
On-site setting: complete by pressing the local button
Calibration: factory calibration, field calibration
Output (selected when ordering)
Analog output signal: 0 ~ 20mA; 4 ~ 20 ma load > 300 Ω; 0 ~ 5 v. 1 ~ 5 v. 0 ~ 10 v. 1 ~ 10 v
Digital output: RS485 (Modbus supported)
Switch output: three-channel NPN
The power supply
Working voltage: DC12 -- 24V
Power consumption: < 1.5 W
Physical properties
Dimension: Φ 74 mm * 92 mm * ((stainless steel); Φ * 117 mm * 74 mm G1 1/2 (ABS)
Installation: M30×1.5, G1 1/2
Material of the shell: ABS engineering plastic;

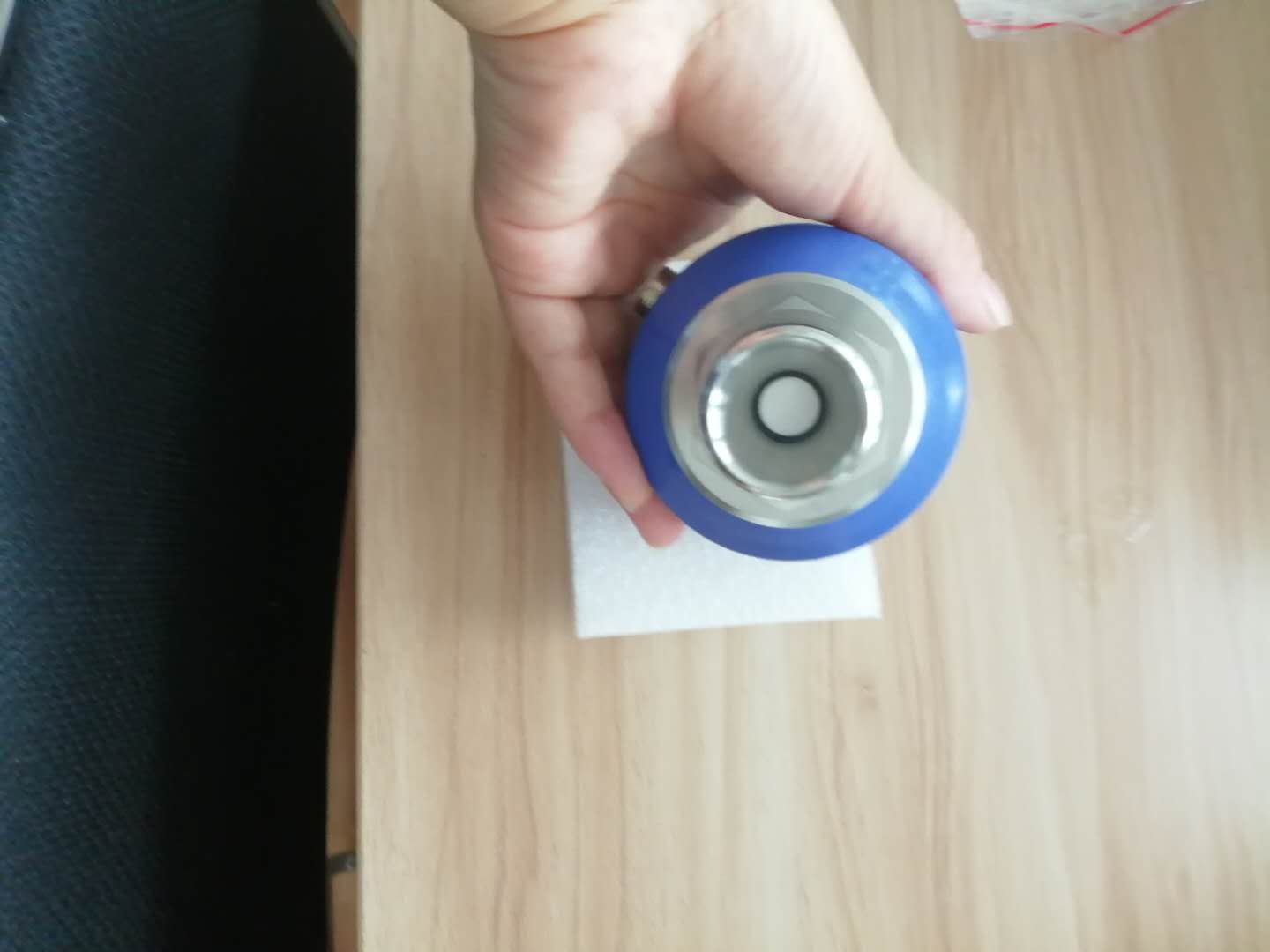

Transducer: stainless steel or ABS engineering plastic

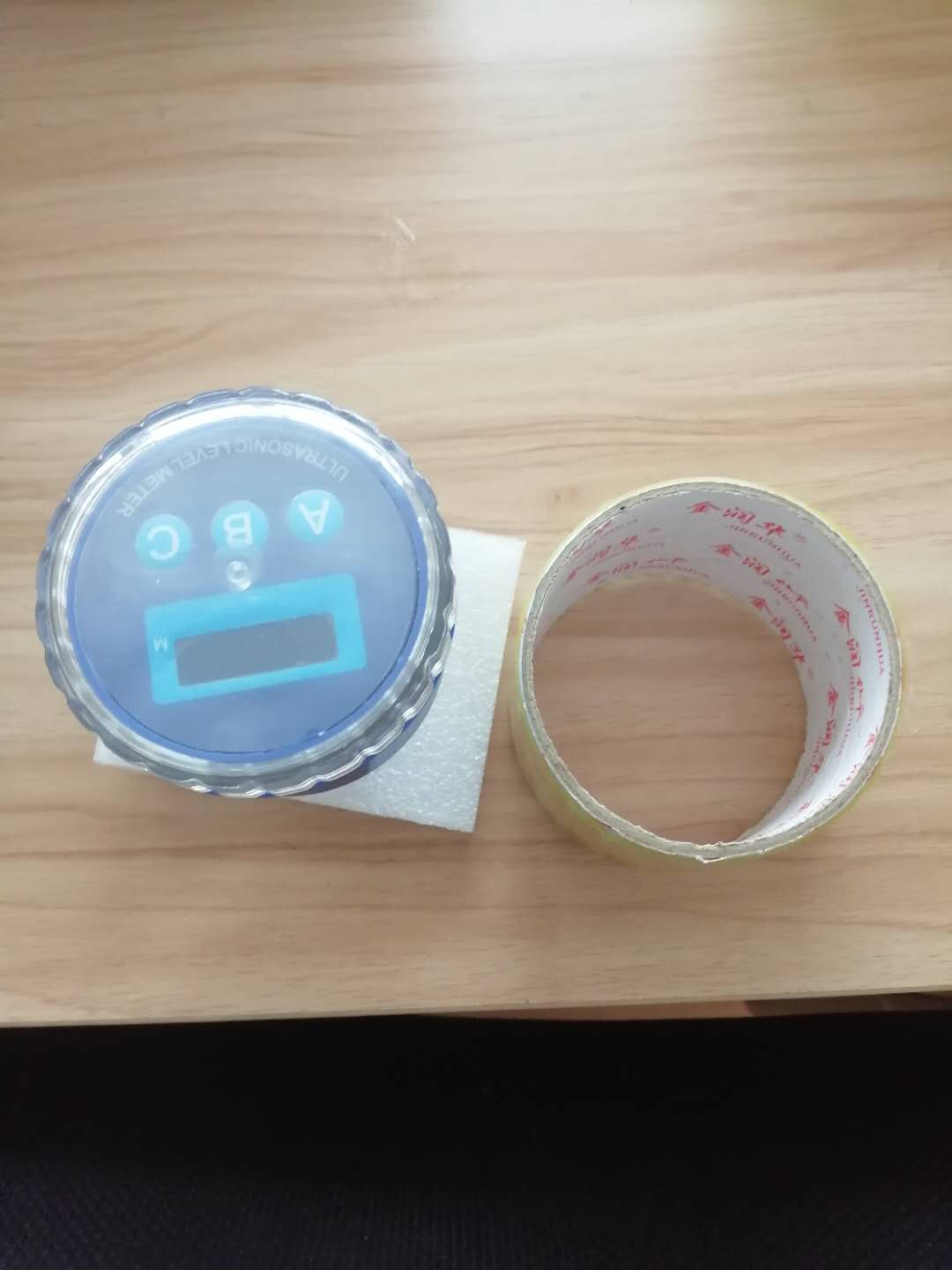

Keyboard: three - place A, B, C keyboard

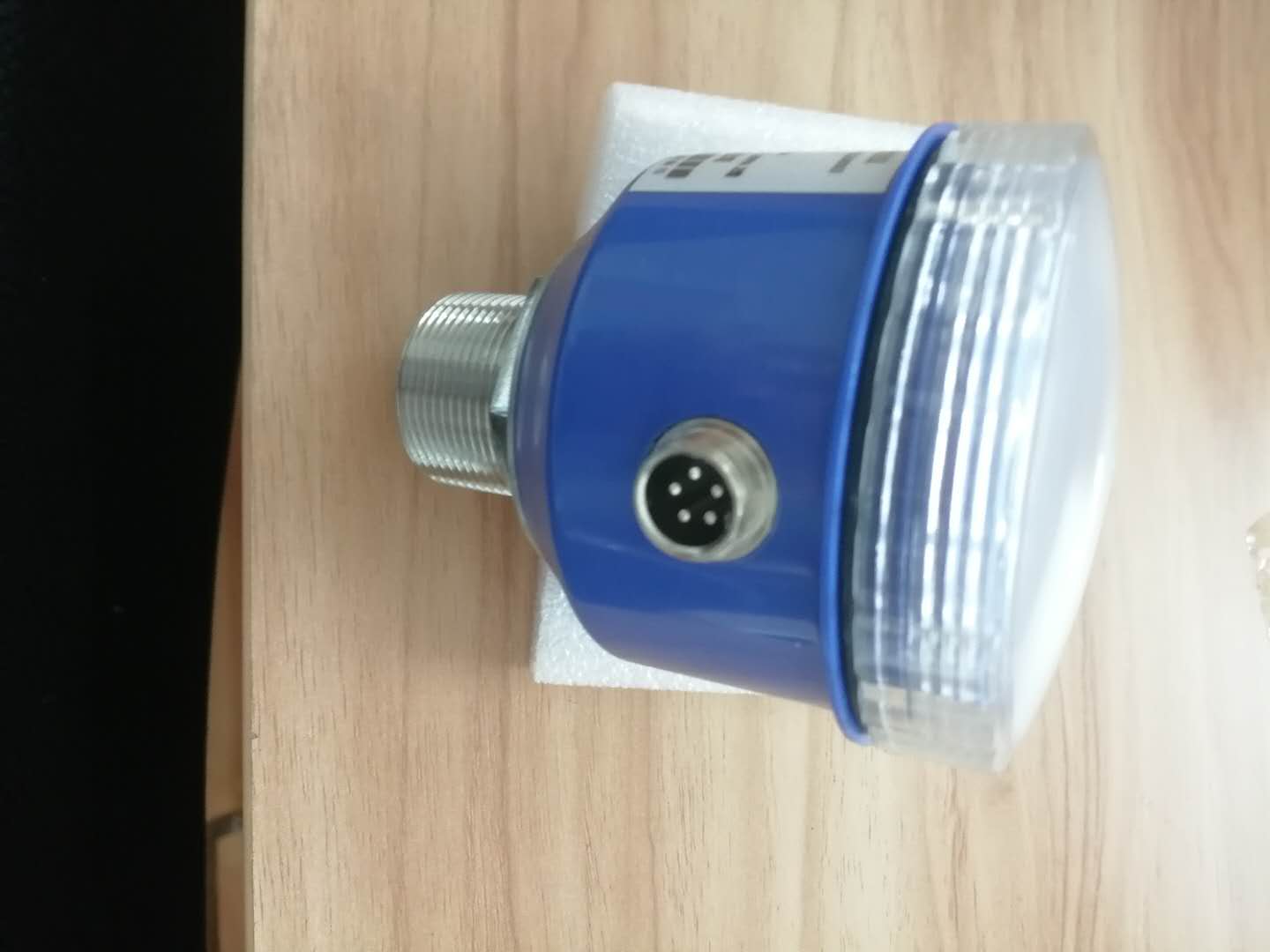

Outlet mode: instrument standard socket or cable 1.5m (optional any length)
Environmental performance
Protection level: IP65 (higher protection level can be customized)
Explosion-proof grade: EXiaII BT4Gb(selected when ordering)
Working environment: normal temperature/pressure
Storage humidity: ≤80%RH without condensation

Description of Product size (unit: mm)
