Split-type ultrasonic object (liquid) position instrument

I. Product introduction

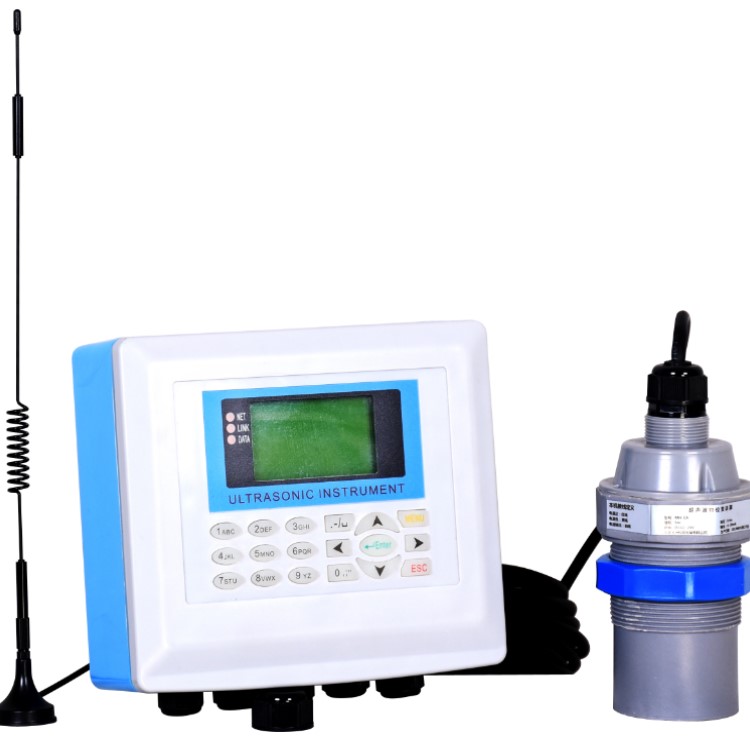

RSTMH-F/FP split-type ultrasonic object (liquid) level instrument is a convenient and applicable split-type ultrasonic object level instrument developed by our company after years of production experience and absorbing the advantages of many similar products, which solves the trouble of easy failure in the circuit of the all-in-one machine in a bad environment. It has the advantages of accurate measurement, reliable operation and generous appearance. Adopt large scale integrated circuit, component SMT rate up to 90%, ensure the long - term reliability of the product. At the same time, it reduces its power consumption to a very low level. It is easy to get started by using a large screen to display all Chinese menus. It supports SD card data acquisition and serial port data download, and can record ten interference echo-points.

Ii. Product features

1. The product is equipped with Bluetooth, GPRS communication and Wifi to realize the Internet of things

2. Backup and restore setting parameters

3. Measurable object level, liquid level, volume, weight, etc

4. The output of analog quantity can be adjusted at will

5. Digital filtering and echo recognition

6. The function of fixed interference filtering can be set manually

7. Support custom serial data format (selected when ordering)

8. Support custom mathematical function operation

9. Support for custom speed of sound (special material measurement)

10. Support for DATA collection of MiniSD card (selected at time of ordering)

11. Support USB output (selected when ordering)

12. Support for micro printers (selected when ordering)

Iii. Application field
1. Water and sewage treatment pump room, collecting well, biochemical reaction tank, sedimentation tank, etc
2. Power, mine mortar pool, coal slurry pool, butter storage tank, storage yard or partial mobile equipment control, etc
3. Food industry winery, granary, food material filling tank, etc
3. Supporting use of the control system

Iv. Performance indexes

1. Ranging range: 2m, 5m, 8m, 10m, 12m, 15m, 20m, 25m, 30m, 35m, 40m (selected when ordering);

2. Blind area: 0.3-2m (different from measuring range)

3. Emission Angle: less than 12° (different from sensor)

4. Ranging accuracy: ±0.3% f.S.

5. Display: Large Chinese and English LCD, color TFT (optional)

6. Minimum display resolution: 1mm

7. Temperature compensation: Automatic temperature compensation

8. Working frequency: 20 KHz ~ 200KHz (depending on the type and specification)

9. On-site setting: complete by pressing the button of this machine

10. Calibration: factory calibration, field calibration

11. It can automatically switch between Chinese and English

V. Output (selected when ordering)
1.  Analog signal output: 4 ~ 20 mA (standard), 0 to 20 mA, 0 ~ 5 V, 0 ~ 10 V load > 300 Ω
2.  Digital communication: RS485, HART Protocol, GPRS, MiniSD Card Data collection, USB (selected when ordering)
3.  4 channel relay Output: Relay contact capacity :AC:5A 250V DC:10A 120V

Vi. the power supply

Operating voltage: AC220V or DC12-24V

Power consumption: < 5 W

Vii. Physical properties

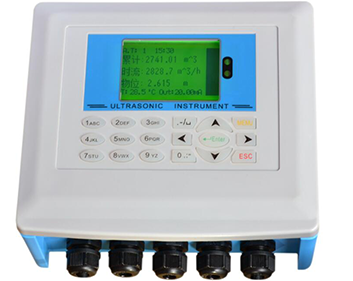

1. External dimensions of the host machine: 180mm×160mm×76mm, /256mm×175mm×110mm

2. Main machine material: ABS engineering plastic/cast aluminum

3. Sensor cable: 10m shielded cable (customizable with any length)

4. Transducer material: ABS engineering plastic, nylon

5. Sensor dimensions: Φ * 119 mm * 65 mm G1 1/2 (2 m span)

74 mm * 137 mm * Φ M60 (5 m to 15 m span)

Φ 110 mm * 194 mm * ((20 m and 40 m span)

6. Sensor installation interface: G1 1/2(2m range)

M60×2 (5m-15m range)

M30x1.5 or DN80 non-standard flange (20m-40m range)

Viii. Environmental performance

Protection level: IP65 (higher protection level can be customized)

Explosion-proof grade: EXiaII BT4Gb(selected when ordering)

Working environment: normal temperature/pressure

Storage humidity: ≤80%RH without condensation
