Level switch

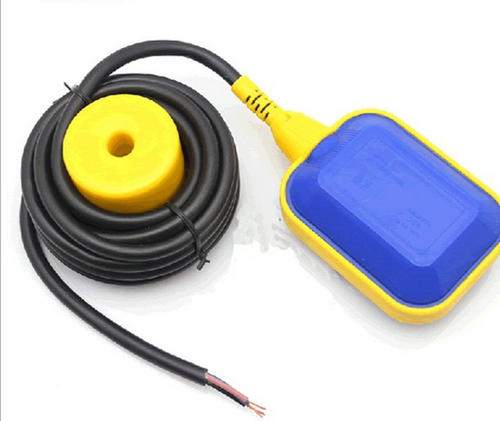

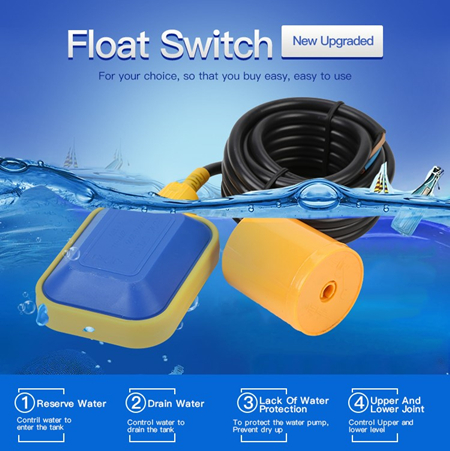

Cable float ball level switch

Imported patent technology overall plastic molding
Simple and reasonable structure, stable and reliable performance
Can be used with all kinds of pumps, and widely used in water supply and drainage and containing corrosion, suspended liquid automatic control
It can also be made into a group form and multi-point control
Product description: This product is designed by the principle of gravity and buoyancy force, with simple and reasonable structure. It mainly includes a floating body, a large-capacity micro-switch set in the floating bod
INQUIRY

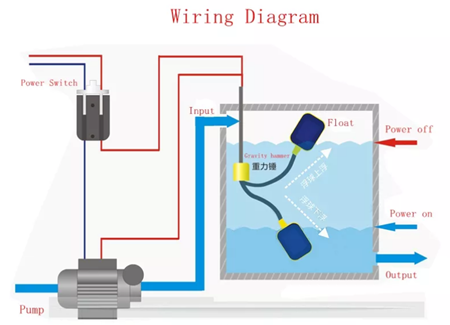

level regulator is a float switch to control the water pump, valve or alarm.
Applied to various kinds of liquid (non-corrosive , sewage water, tank, )
Non-toxic polypropylene(PP) float body and pvc or rubber cable, particular design for sealing,
Silver point micro switch. Heavy sinker. max 0.2mp water pressure ,no any leakage.

production name :	float switch
production model :	LF-02
rated voltage:	110VAC & 220V AC
rated current:	25A,16A,10A
temperature:	0℃~60℃
material of cable	Pvc or rubber
measure of wire	0.5mm2, 0.75mm2,1.0mm2
shell of body	pp
rank of water pressure	0.2MP
