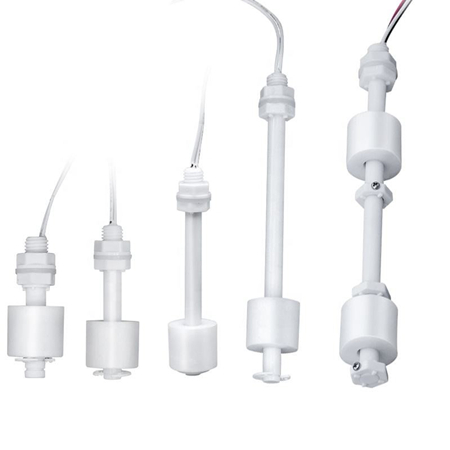

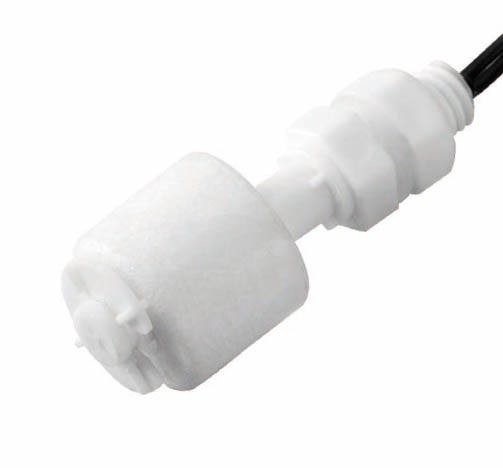

PP Material Magnetic Water Tank Dry Reed Float Liquid Level Sensor Switch

Product description:
INQUIRY

The float switch is a simple and easy-to-use liquid level control part. It has no complicated circuit and is not subject to interference. Usually it is placed in a closed metal tube or plastic tube, and one or more reed switches are provided. After that, one or more hollow floats with a ring-shaped magnet inside the reed pipe are fixed on the rod diameter, and are fastened to the position of the magnetic spring by a buckle, so that the float ball is in a certain range with the liquid level. The surface changes in height and floats up and down, using the magnet inside the float and the reed switch to generate magnetic field induction, so that it generates an open and closed action signal, and controls the liquid level.

Model		RSTLF-P

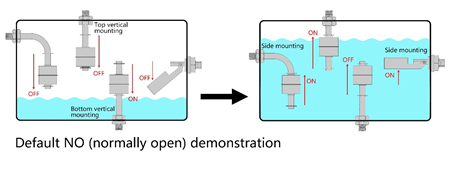

Installation		Top or bottom perpendicular instal
Mounting dimension		M8
Operating characteristic		N.O/N.C (optional)
Material Specification		Electrical Specification			Physic Specification
Float ball	PP	Contact form	1A	2A	Min shock: 30G on board
Float body	POM	Max contact rating	10W	50W	Min Vibration: 1.5mm (10-55HZ)
Cap nut	POM	Max switching voltage	100VDC	220VDC	Temp Rating: -10-+85°C
O-ring	Silicon	Max breakdown voltage	200VDC	300VDC	Max pressure: 0.2MPa
E-ring	POM	Max switching current	0.5A	1.5A
Filling	EPOXY(ROHS)	Max carry current	1.0A	3A
Wire	UL1007/UL1015 22AWG /24AWG	Max contact resistance	100Ω	100Ω
Wire	UL1007/UL1015 22AWG /24AWG	Working Life	100,000,000
