Level switch

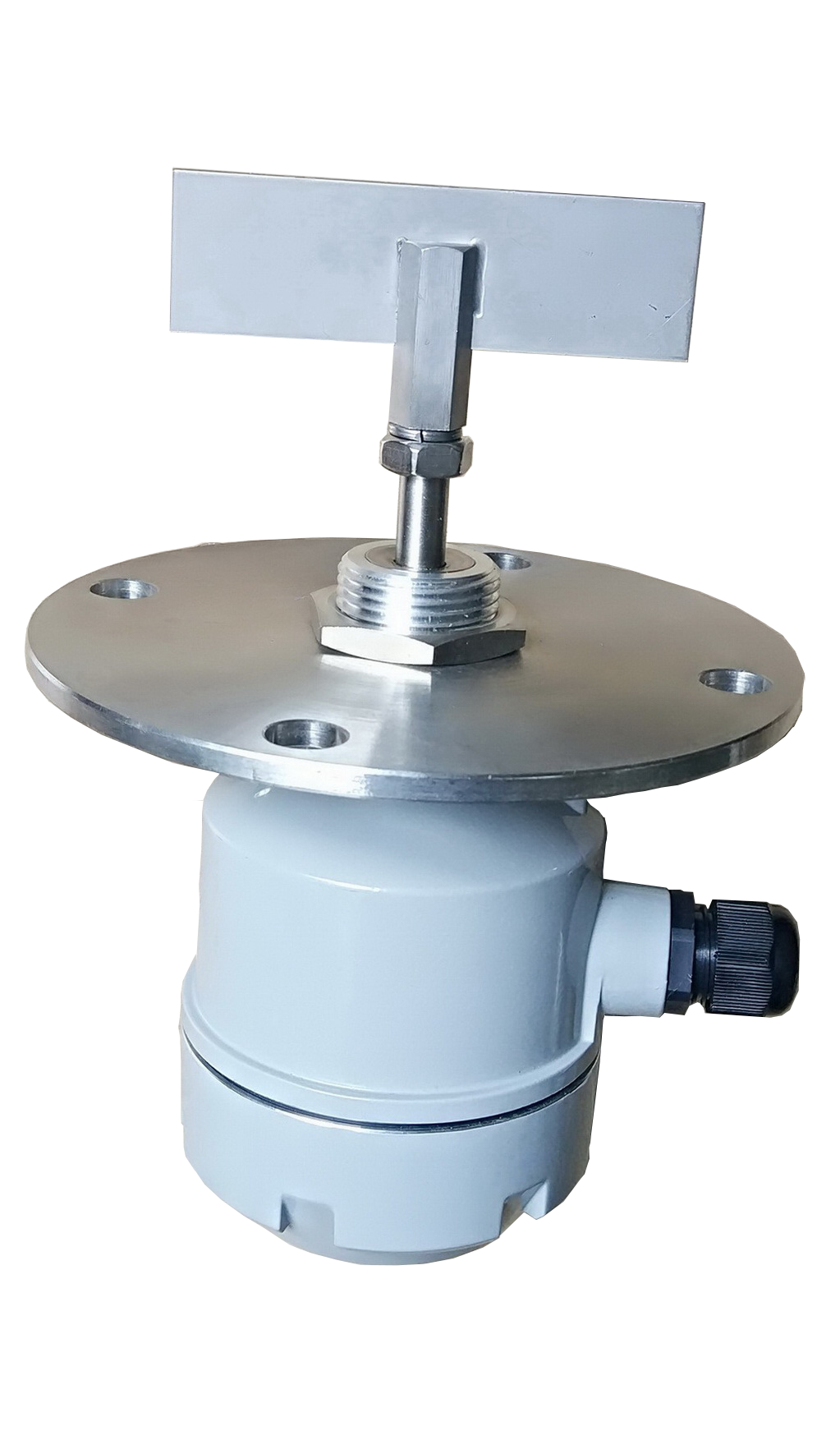

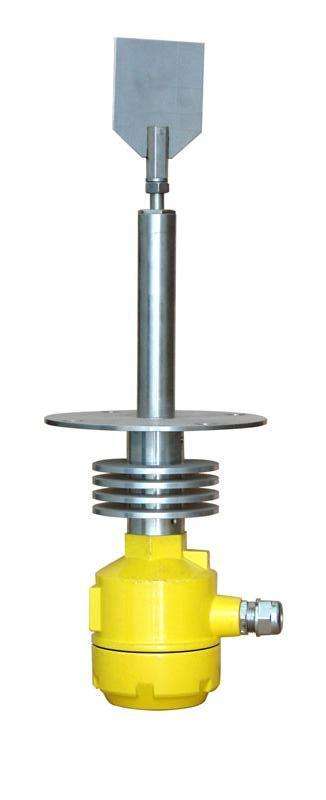

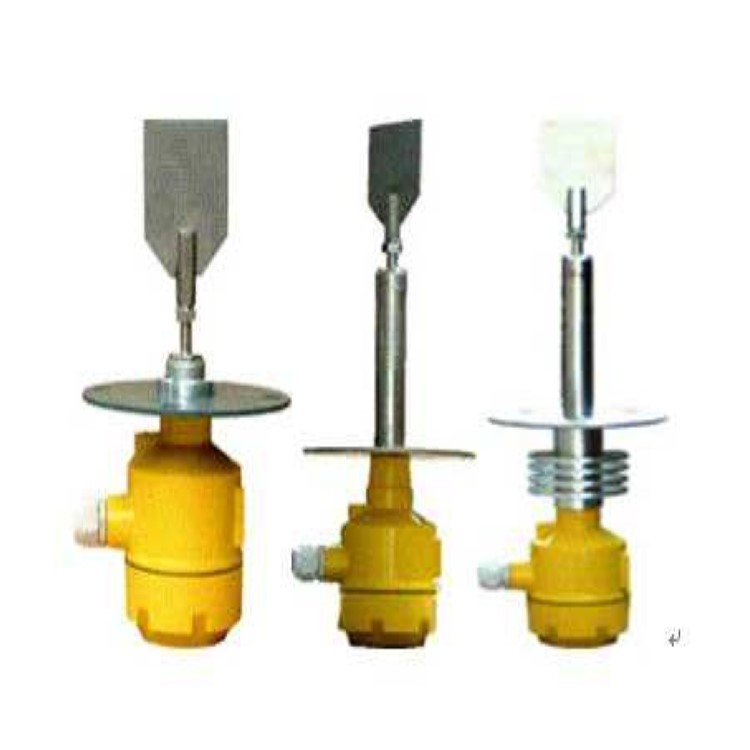

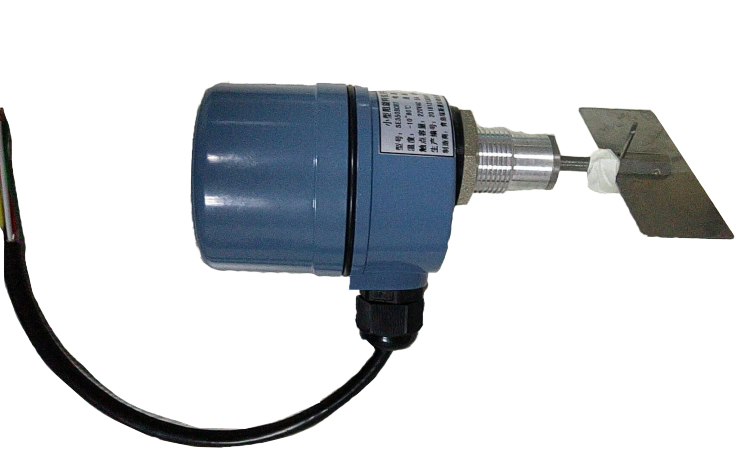

Rotary resistance level switch

Product description: ZX- type resistance switch is a level controller for solid materials (including powder, block, granular, colloidal, etc.). It has the characteristics of good sealing, strong overload capacity, light a
INQUIRY

Products Description

The resistance-type material level switch is equipped with a meter motor in a junction box, which uses a clutch device to connect a transmission shaft with a blade at the other end. When the material is not in contact with the material, the blade and the motor keep rotating coaxially along the transmission shaft. When the blade is in contact with the material and the shaft is blocked, the motor stops rotating and an alarm signal is issued.

Specification

Product Name	Rotary Paddle Level Switch Solid Grain Bulk level switch
Working Voltage	AC220V/1A; DC24V/0.5A
Power	3W
Contact Capacity	SPDT 5A/250VAC
Processing Connection	G1''thread; customized
Vane Rotating Speed	1RPM
Torque	10kg-cm
Voltage Resistance	1500VAC×1min
Suitable Gravity	≥0.4g/cm3
Temp. Range	-20~80ºC；customized
Electrical Interface	1/2″ PF
Protection Grade	IP65
Installation	vertical or horizontal installation
