Level switch

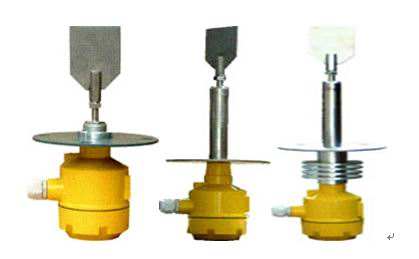

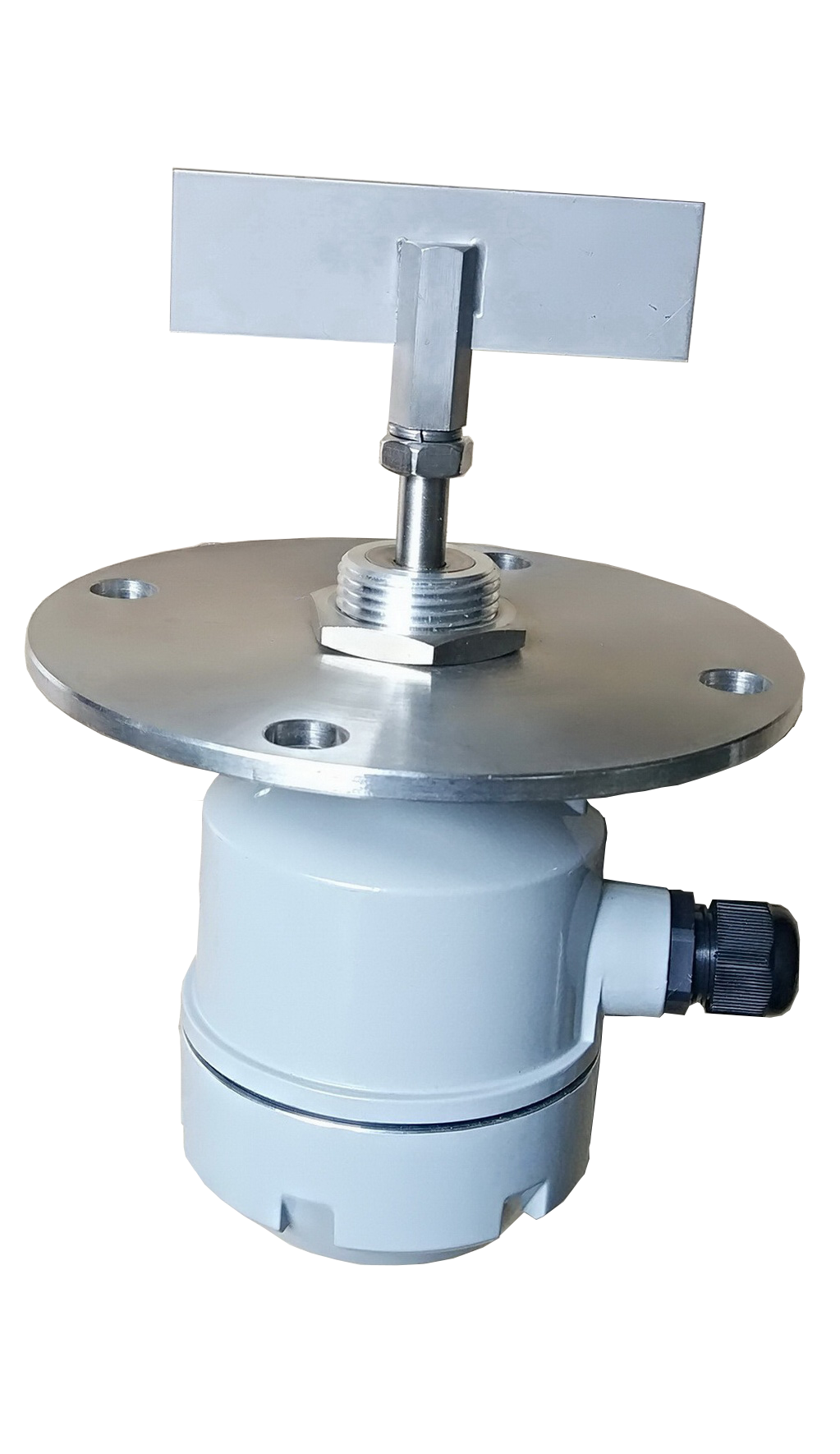

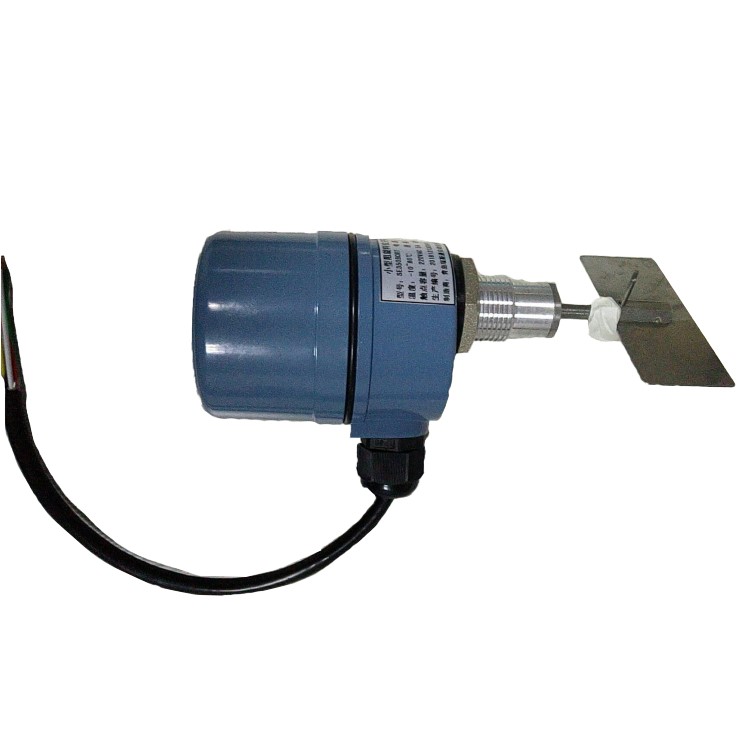

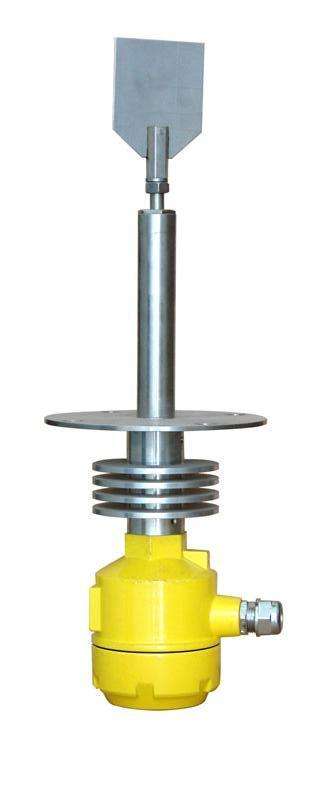

Small rotary resistance level switch

High cost performance
Motor drive
Switch control
Job stability
Product description: ZX-80 type resistance switch is a level controller for solid materials (including powder, block, granular, colloidal, etc.). It has the characteristics of good sealing, strong overload capacity, light
INQUIRY

Products Description
The resistance-type material level switch is equipped with a meter motor in a junction box, which uses a clutch device to connect a transmission shaft with a blade at the other end. When the material is not in contact with the material, the blade and the motor keep rotating coaxially along the transmission shaft. When the blade is in contact with the material and the shaft is blocked, the motor stops rotating and an alarm signal is issued.

Specification

Working voltage	AC220V/24VDC/24VAC
Power	AC 5A/250V DC10A/24V (Single pole double throw)
Blade speed	1RPM (transfer / minute)
Torque	1.0KG× cm
Material weight	≥0.5g/cm3
Operating temperature	-20°C~80°C (Max. 300°C)
Insulation resistance	≥100MΩ
Dielectric strength	1500V*1min
Protection level	IP65
Blade material	SUS304
