Level switch

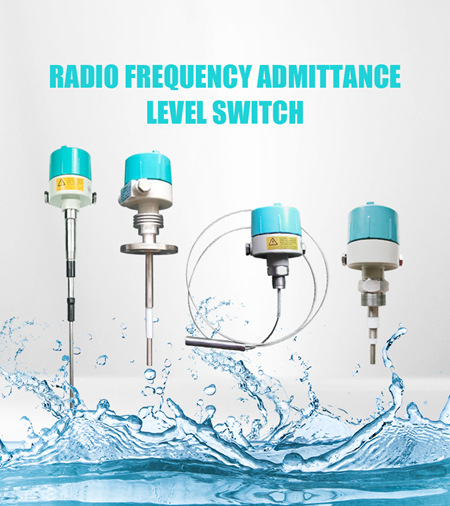

Rf admittance level switch

capacitive
To prevent the hanging
More reliable and accurate
Wide range of application
Product description: Rf capacitor switch is a kind of high intelligent material level measurement product, which overcomes the inconvenience brought to customers by the low alarm precision and complex adjustment steps of
INQUIRY

Products Description
The RF admittance level controller is based on radio frequency (RF) capacitor technology. A radio frequency is applied to the probe and continuous analysis determines the effects caused by the surrounding environment. The energized probe and the container wall form the two pole plates of the capacitor. The insulator of the probe and the surrounding air become dielectric materials. All materials have a dielectric constant that is greater than air. When air is replaced by any other material, the capacitance The effect is strengthened, which changes the impedance of the application, that is, the change in capacitance causes a change in impedance. This effect is measured by the circuit and compared with a reference established by the sensitivity setting (circuit)

Specification

Sensitivity	0.5PF
Measuring length	200-10000mm
Medium temperature	-40~800℃
Repeatability	±3mm
Indication method	LED
Power supply voltage	DC24V/AC220V
Ambient temperature	-40-80℃
