Level switch

Cable Type Float Level Switch

Product description:
INQUIRY

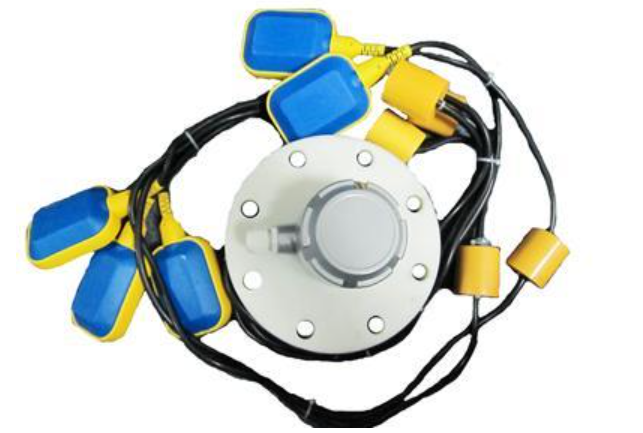

LF400 cable float level switch is made of plastic injection molding, so it has strong structure, low price and long service life. Control of long distance, multi-point liquid level control, submersible pump or liquid containing granular / block. DLP cable float level switch uses micro switch as contact output. When the upward line angle of the horizontal plane is more than 28,the steel ball inside the float level switch will sandwich and roll down to the micro switch or separate from the micro switch to output the on or off contact signal of the liquid level switch.

Floating ball material	SUS304 / 316
Cable specification	0.75mmx3c
Contact capacity	2A / 250VAC
Contact type	SPDT
Applicable temperature	- 0 ° c-170 ° C
Output signal	Relay alarm
Applicable specific gravity	0.5
Withstand voltage	2kg / cm '
Cable material	silicone rubber
Switch life	2 million times
Float number	1，2，3，4.......
