Material level meter

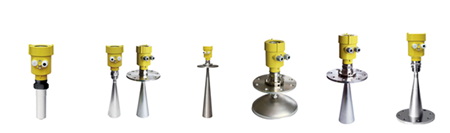

High frequency corrosion resistant radar level gauge

High frequency corrosion resistant radar level gauge

Large range
High energy and small beam Angle
Good directivity, strong anti-interference ability

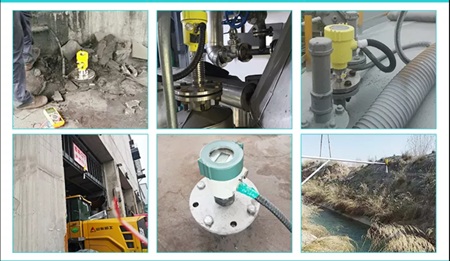

Wide range of applications
Product description: RST80- Series sensors are 26G high frequency radar level measuring instruments, measuring the maximum distance up to 70 meters. The antenna is further optimized and the new fast microprocessor can ana
INQUIRY

Products Description

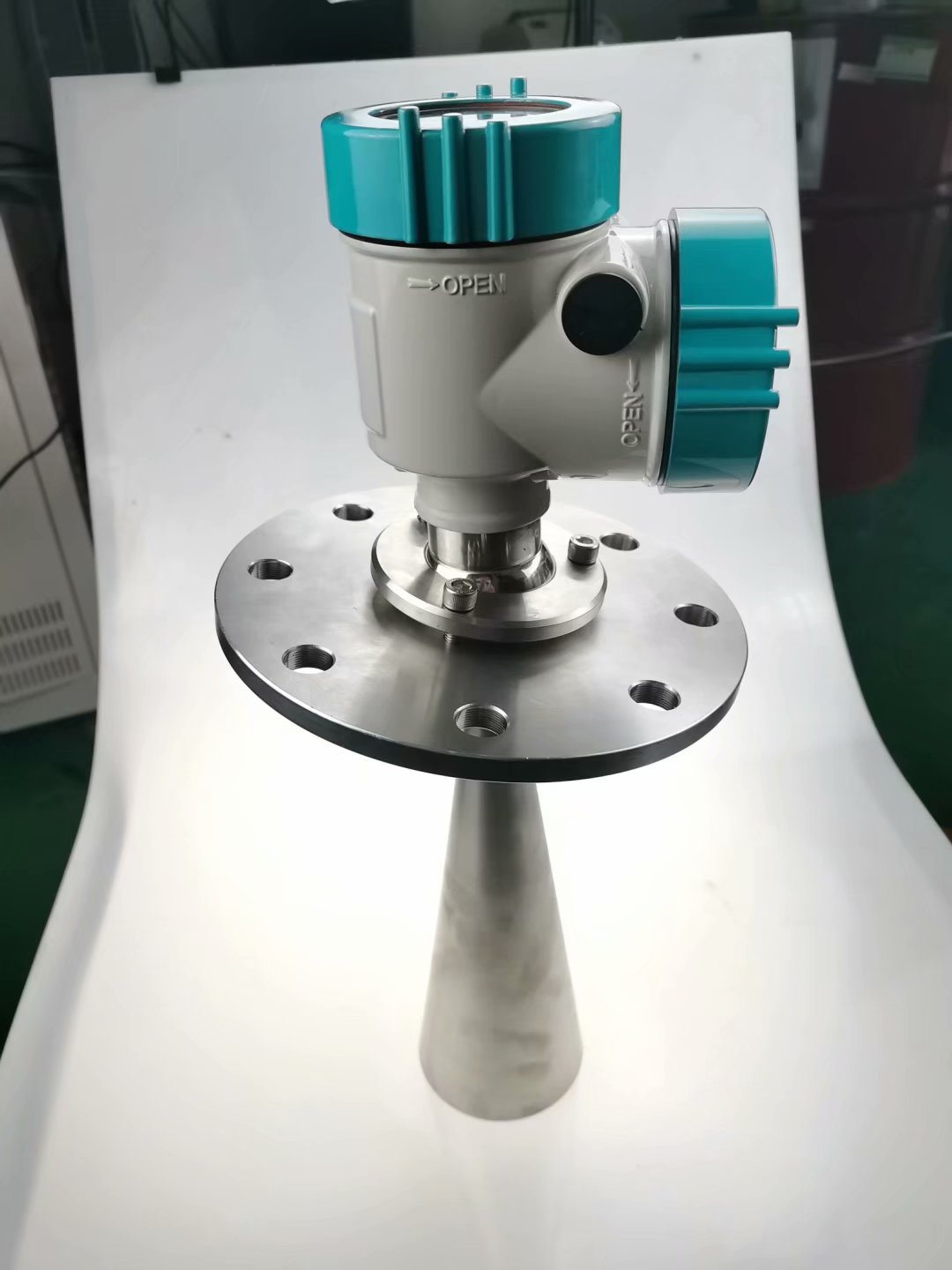

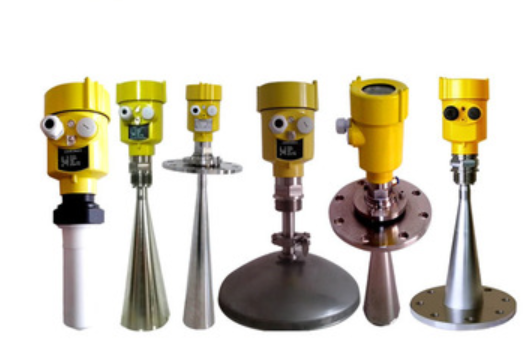

Intelligent 26ghz High Frequency Radar Level Meter With OEM Cement Radar Level Meter Gauge Sensor
The RD800 series radar sensor is a high frequency microwave pulse type radar level gauge. The electromagnetic wave of about 11mm is emitted by the radar antenna system, and the focus of the horn antenna is reflected on the material surface. The reflected echo is received through the antenna system.

Specification

Code	RD-801	RD-802	RD-803	RD-804	RD-805	RD-806

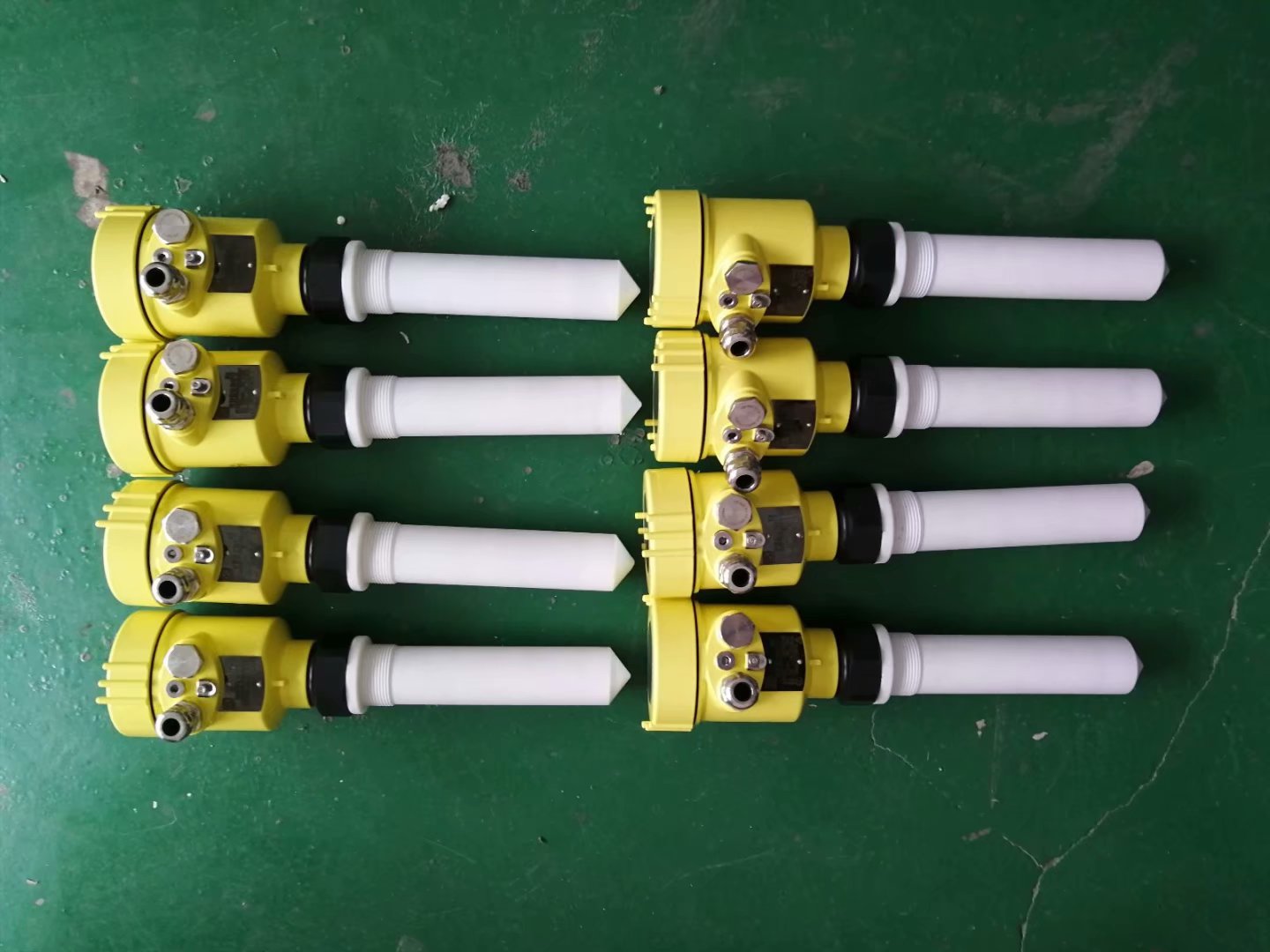

Application	Corrosive Liquid	High Pressure and Temperature Slight Corrosive Liquid	Solid Powder Dusty working field	Solid Powder Dusty working field	Solid Block/Powder	Sanitary Water Tank Strong Corrosive Tank
Measure Range	10m	30m	70m	80m	30m	20m
Connection	Flange/Thread	Flange/Thread	Universal Flange Normal Flange	Thread Universal Flange	Universal Flange Normal Flange	Flange
Working Temperature	-40~130℃	-40~250℃	-40~250℃	-40~250℃	-40~250℃	-40~150℃
Working Pressure	-0.1~0.3MPa	-0.1~4MPa	-0.1~4MPa (Normal Flange) -0.1~0.3MPa (Universal Flange)	-0.1~0.3MPa	-0.1~4MPa (Normal Flange) -0.1~0.3MPa( Universal Flange)	Normal Pressure
Accuracy	±5mm	±3mm	±15mm	±15mm	±10mm	±3mm
Frequency	26GHZ	26GHZ	26GHZ	26GHZ	26GHZ	26GHZ
Explosion-Proof Grade	ExiaIICT6	ExiaIICT6	ExiaIICT6	ExiaIICT6	ExiaIICT6	ExiaIICT6
Protective Grade	IP67	IP67	IP67	IP67	IP67	IP67
Filed Display	4 bit LCD Programmable	4 bit LCD Programmable	4 bit LCD Programmable	4 bit LCD Programmable	4 bit LCD Programmable	4 bit LCD Programmable
Shell Material	Aluminum/Plastic	Aluminum/Plastic	Aluminum/Plastic	Aluminum/Plastic	Aluminum/Plastic	Aluminum/Plastic
Signal Output	4-20mA/HART/RS485	4-20mA/HART/RS485	4-20mA/HART/RS485	4-20mA/HART/RS485	4-20mA/HART/RS485	4-20mA/HART/RS485
Power Supply	24VDC/220VAC	24VDC/220VAC	24VDC/220VAC	24VDC/220VAC	24VDC/220VAC	24VDC/220VAC
