High frequency parabolic radar level meter

High frequency parabolic radar level meter

Large range
High energy and small beam Angle
Good directivity, strong anti-interference ability
Wide range of applications
Product description:
INQUIRY

Products Description
Intelligent 26ghz High Frequency Radar Level Meter With OEM Cement Radar Level Meter Gauge Sensor

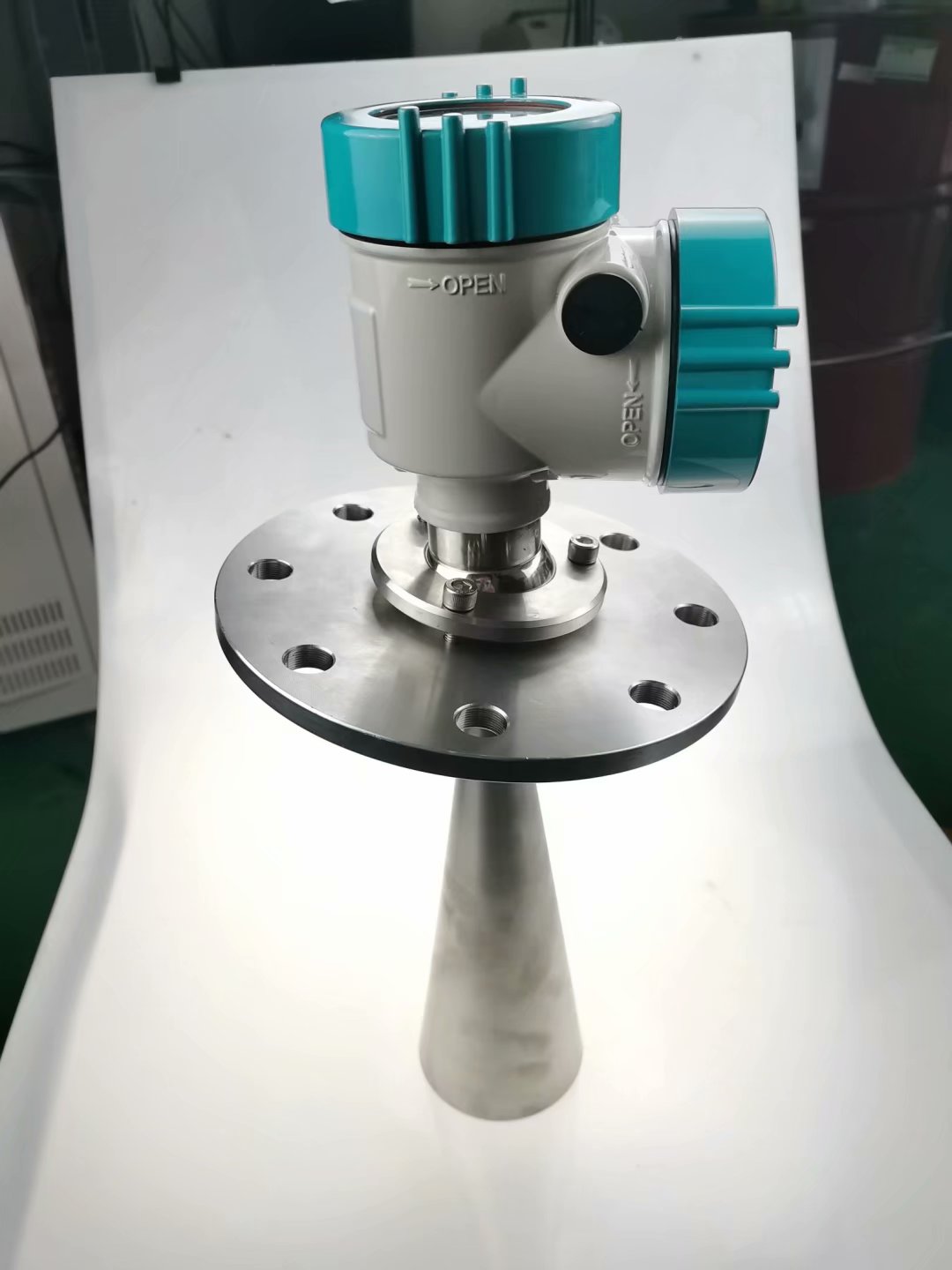

The RD800 series radar sensor is a high frequency microwave pulse type radar level gauge. The electromagnetic wave of about 11mm is emitted by the radar antenna system, and the focus of the horn antenna is reflected on the material surface. The reflected echo is received through the antenna system.

Specification

High frequency radar level meter RD800
Medium	Liquid/powder/granule
Power supply	DC24V
Measuring range	70 meters
Process connection	Universal flange、G1.5 inch thread or bracket
Medium temperature	-40~230℃
Process pressure	-0.1~3Mpa
Precision	±5mm
Frequency Range	26GHz/80GHZ
Protection level	IP67
Explosion-proof grade	ExdibIICT4 Gb
Signal output	4-20Ma/HART(Two-wire/four-wire)RS485/Mod bus
Antenna material	304 stainless steel/PTFE/PFA
Electrical Interface	M20*1.5

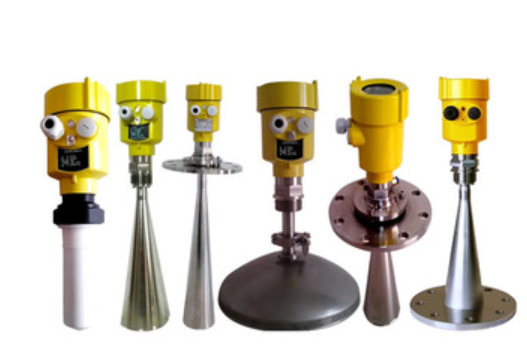

Antenna form	96 bell mouth/Lens type / PTFE rod type / sanitary flat type
