Flow switch

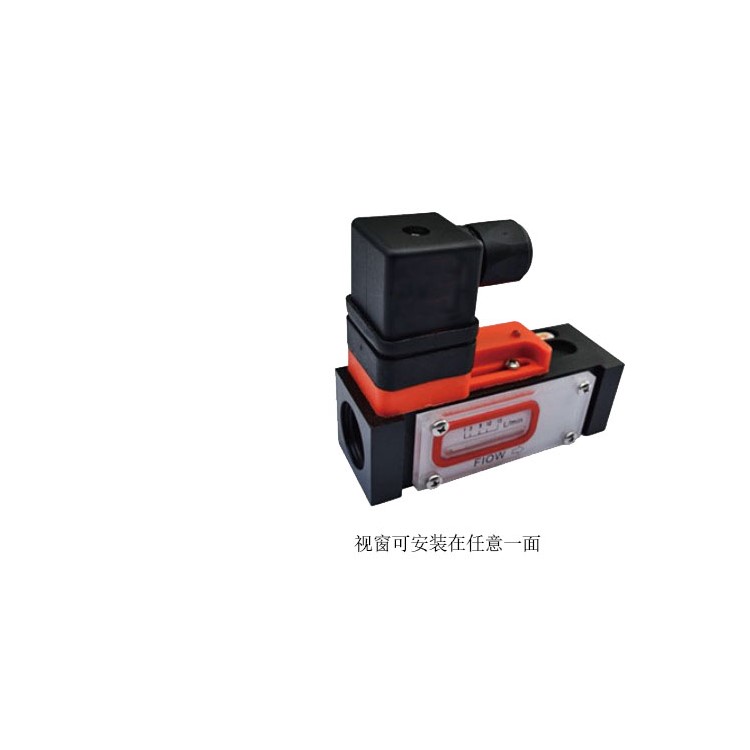

Visual plunger type flow switch
- Reliable and stable
- Signal accurately
- Size small
- Widely used
- Product description: On-line installation, mechanical flow switch, for liquid or gas medium. Sturdy plastic, aluminum or stainless steel case is optional. Minimal pressure loss, good repeatability, anti-fouling ability, c
On-line installation, mechanical flow switch, for liquid or gas medium. Sturdy plastic, aluminum or stainless steel case is optional. Minimal pressure loss, good repeatability, anti-fouling ability, complete isolation between mechanical and electronic parts, suitable for low flow economy. 3 times the piston stroke of the original RST-HS to make the setting accuracy more accurate. With a switch setting scale, users do not need to set in the field. LED display switch status, double switch output optional. Gas-liquid dual purpose, industrial automation/mechanical equipment/air compression industry/refrigeration and air conditioning.
II.Technical parameters
|
Setting range: |
See parameter table |
RST-HS100...GS Material: |
Case: POM plastic |
|
Accuracy: |
±5% total range |
|
Piston: POM plastic, stainless steel |
|
Hysteresis: |
Depending on the switch, the amount is small 0.5L/Min |
|
Spring: stainless steel |
|
Switch setting scale: |
Sealing in water medium, temperature 20℃, horizontal installation state |
|
Seal: NBR |
|
|
The calibration. Installation position, medium and temperature changes will have a slight effect on the switch value. |
RST-HS100...GLmaterial: |
Shell：Anodic alumina |
|
|
|
|
Piston：POM plastic, stainless steel |
|
LED display |
DC power supply LED display switch status, AC no LED display. |
|
Spring: Stainless steel |
|
Wiring: |
Connector |
|
Seal: NBR |
|
Output: |
Spring switch, capacity 24VDC/250VAC, 100mA |
RST-HS100...GB material: |
Shell：Stainless steel |
|
Pressure: |
50 bar type (aluminum), 100 bar type (stainless steel) |
|
Piston：POM plastic, stainless steel |
|
Average pressure loss: |
0.3bar(at 25L/min) |
|
Spring: Stainless steel |
|
Medium temperature: |
maximum 90℃ |
|
Seal：NBR |
|
Protection level |
IP65 |
|
|
III.Product size
IV.Installation instructions
V.Selection table
|
RST-HS |
|
|
|
|
|
|
|
|
|
|
|
800 |
|
|
|
|
|
|
|
C Hersman plug |
|
|

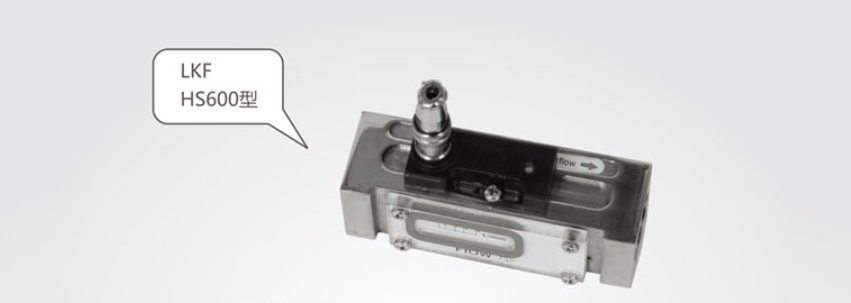

600 |
|
|
|
|
|
|
|
H Air plug |
|
|
|
015 |
G |
D |
L |
015 |
1 |
W |
|
|
|
|
008 |
|
|
|
|
|
|
Threaded joint G1/4 |
|
|
|
010 |
|
|
|
|
|
|
Threaded joint G3/8 |
|
|
|
015 |
|
|
|
|
|
|
Threaded joint G1/2 |
|
|
|
020 |
|
|
|
|
|
|
Threaded joint G3/4 |
|
|
|
025 |
|
|
|
|
|
|
Threaded joint G1 |
|
|
|
032 |
|
|
|
|
|
|
Threaded joint G1 1/4 |
|
|
|
|
G |
|
|
|
|
|
Internal thread |
|
|
|
|
W |
|
|
|
|
|
External thread connection |
|
|
|
|
R |
|
|
|
|
|
Hose connection |
|
|
|
|
F |
|
|
|
|
|
Flange connection |
|
|
|
|
|
D |
|
|
|
|
Dc power 24V±20%DC |
|
|
|
|
|
A |
|
|
|
|
Ac power230V±15%AC |
|
|
|
|
|
|
S |
|
|
|
Plastic shell |
|
|
|
|
|
|
L |
|
|
|
Anodized alumina casing |
|
|
|
|
|
|
T |
|
|
|
Bronze alloy |
|
|
|
