Tuning fork resonance densitometer

Reliable measurement accuracy
Communicate directly with PC
The viscosity can be up to 20000cP
High cost performance
Product description: The tuning fork densimeter sensor is designed according to the principle of vibration of components. This vibration element is similar to a two-toothed tuning fork. The fork body vibrates because of a
INQUIRY

Products Description

Customized Intelligent Online liquid slurry ammonia tuning fork density meter

The plug-in density meter can perform density detection online in real time. It can be used for process control of products with density as the basic parameter or quality control with reference to concentration percentage. It is used for interface detection in multi-industry and multi-product pipelines, density detection of stirred mixtures, end-point monitoring of reactors, and interface detection of separators. Tuning fork density transmitter can display together: density, mass percentage, temperature

Specification

Tuning fork density meter parameter specification table
model	RSTYCM30
Measuring range	0 – 2.5 g /cc (0 – 2500 kg/m3),0~100.0%
Calibration range	0 – 2.5 g /cc (0 – 2500 kg/m3),0~100.0%
measurement accuracy	± 0.001 g /cc (± 1 kg/m3),±0.1%
Operating temperature range	20-80℃
Working pressure	2mpa
Fluid viscosity range	0 – 600 cP
Built-in temperature sensor	Digital sensor
Sensor material	316L/316 stainless steel sprayed PTFE
Material of connecting rod and flange	316L/316 stainless steel sprayed PTFE
Power supply	24VDC,≥50 mA
Analog signal output	4-wire system/4 -20 Ma/Modbus485
Process connection	DN50 PN16 20592
Protection level	IP65
Electrical Interface	M20*1.5
shell	Aluminum alloy
length	150MM
Explosion-proof grade	Exd IICT6 Gb
Explosion-proof certificate number	SYEx20.03186
Installation requirements	The minimum is DN150, the flow velocity is less than 5m/S, and the measuring position is full without bubbles

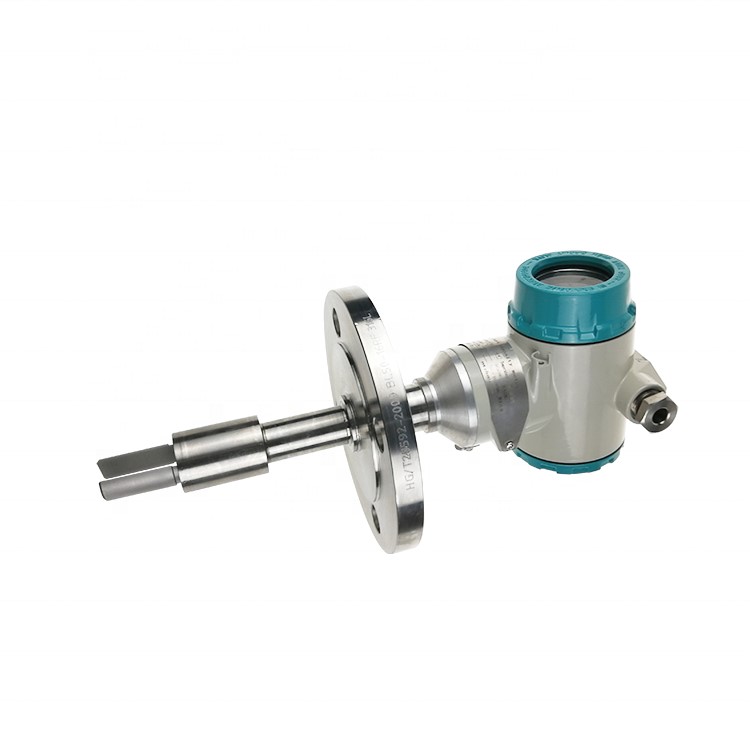

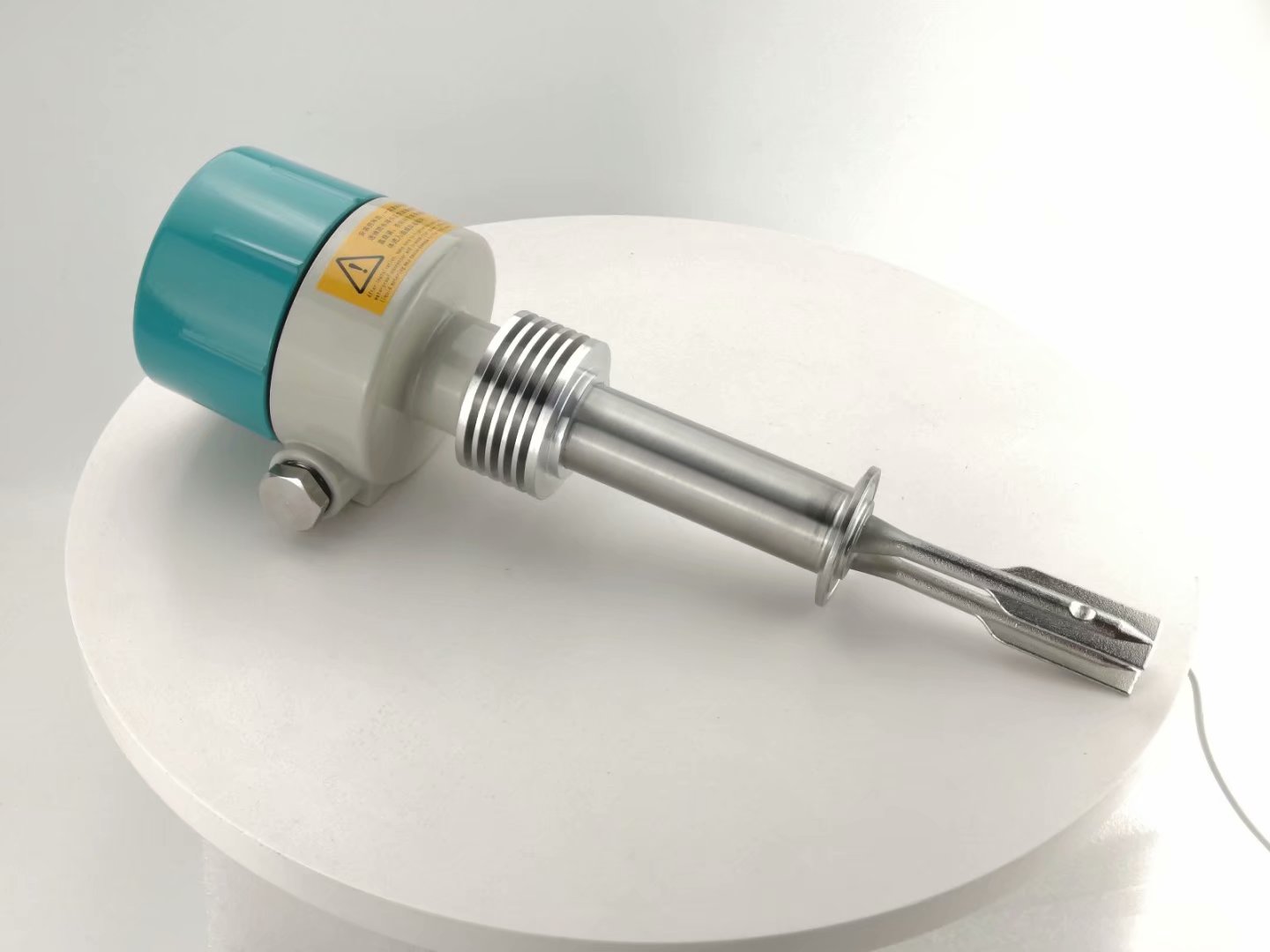

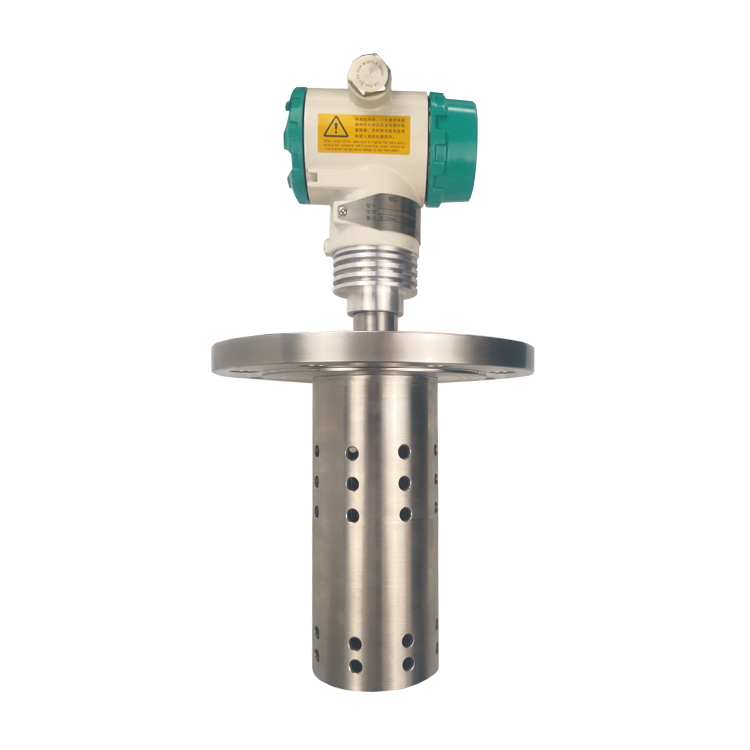

Product Product DisplayDisplay

Product Application

Tuning fork density meter application: measuring the density of lime slurry, low-corrosion liquid industries, such as: oil field refining, food and beverage, paper industry, chemical acid and alkali solutions. Liquor, salt, printing and dyeing industries. Lime slurry, desulfurization circulating slurry, oil tank density measurement, salt pond density measurement, sewage density measurement, alcohol density measurement, battery sulfuric acid density measurement, cutting fluid density measurement, electroplating pool density measurement. According to different media, choose the corresponding material 316 stainless steel, 2205 two-way stainless steel, PTFE sprayed PTFE, titanium alloy, Hastelloy alloy
